AS5643 Adapter - Repeater with connector adaption!

AS5643 FireRepeater utilizing
different connector types and form factors.
Home Products FireRepeater Adapter

FireRepeater Adapter

FireRepeater Adapters are intended to function as repeaters but also change the connector type per channel (e.g. from 1394b to D38999)

In that role Adapters work perfect in various steps of an integration project especially when dealing with equipment with different interconnectivity (connector) types.

In DapTechnology's definition "Adapters" are repeaters that change the connector types utlizing the same transport media (e.g. copper, copper). This definition would extend to a configuration in which different media types are used for each channel in a multi-channel Adapter.
Be aware that DapTechnology refers to "Repeaters" (for same connector types) and "Converters" (for different media types).

Typical features

  • Copper-based 1394 connections with transformers
  • different connector types
  • 10 - 33V power Input
  • single- and multi-channel
  • extensive customization options

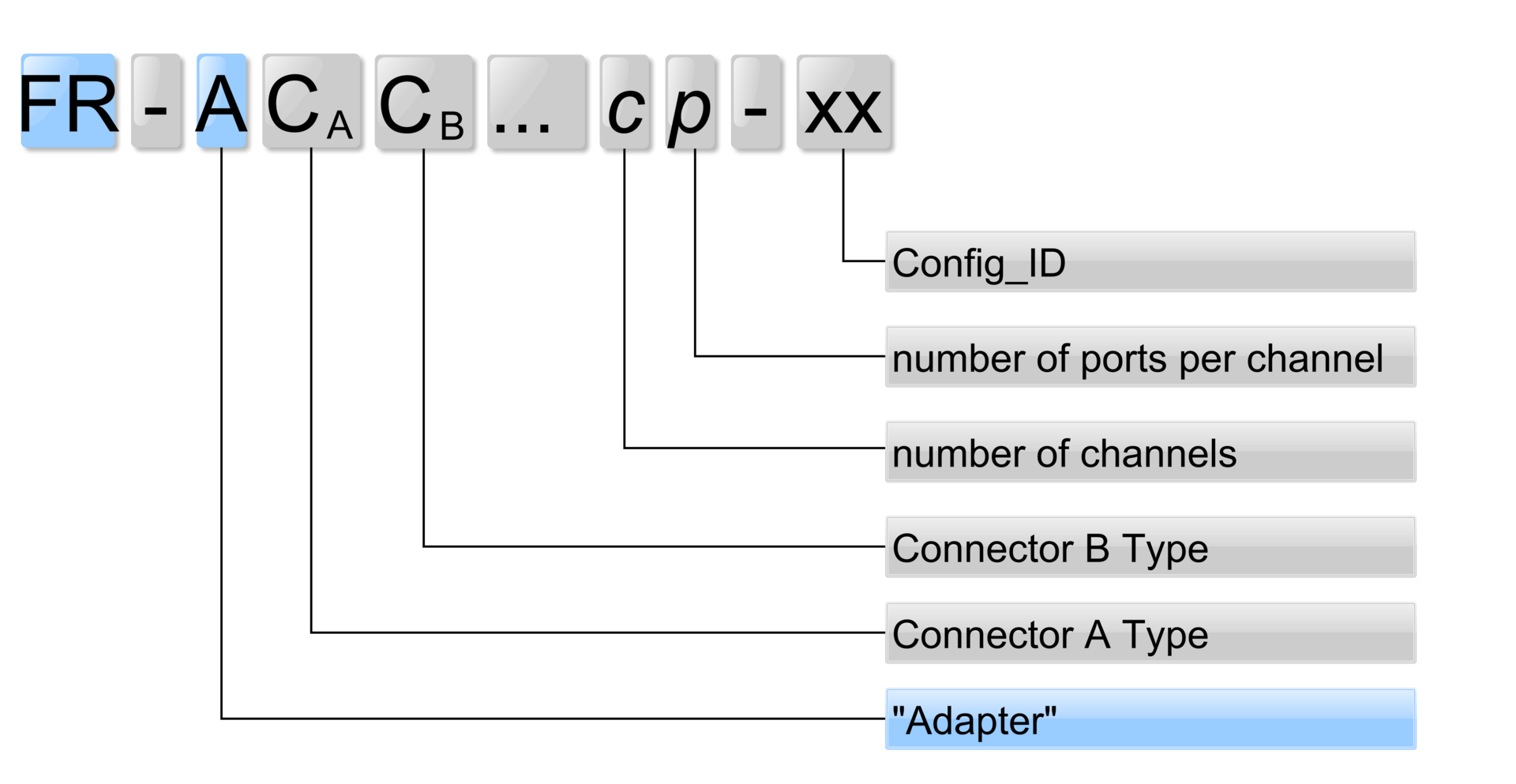

Part number

fixed fields in blue, grey fields subject to customer choices and options (see separate tab)

Typical Models

DapTechnology has also built a variety FireRepeater_Adapter models and the most common variants are listed below. But be sure that you consult with our sales experts for your specific needs. The FireRepeater line offers a large number of options with the most often inquired options listed on the Options tab for each FireRepeater type.

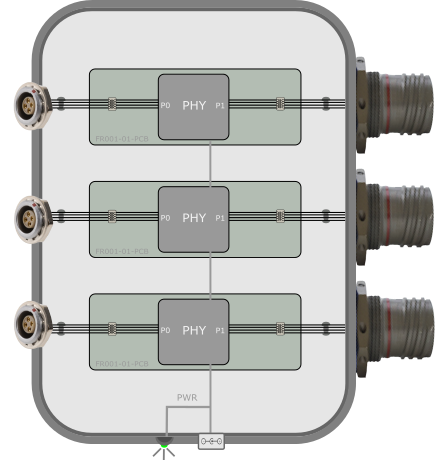

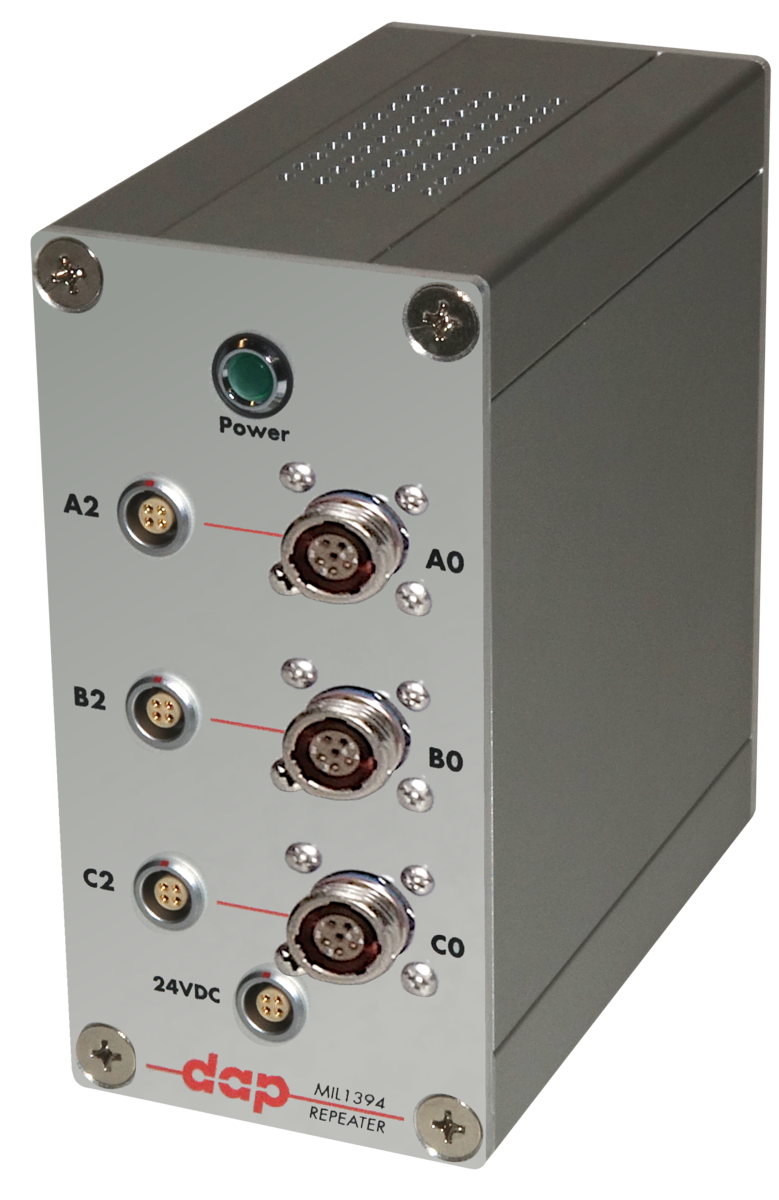

FR-ALM32-01

- 3-channel media converter
- 2 ports per channel
- 3x LEMO (female, copper)
- 3x  MIL38999 (copper)
- external AC/DC power supply
- DIN rail mountable enclosure

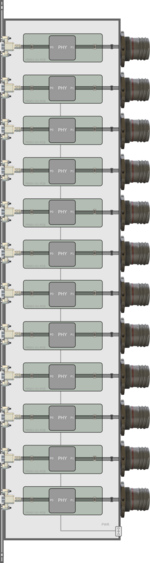

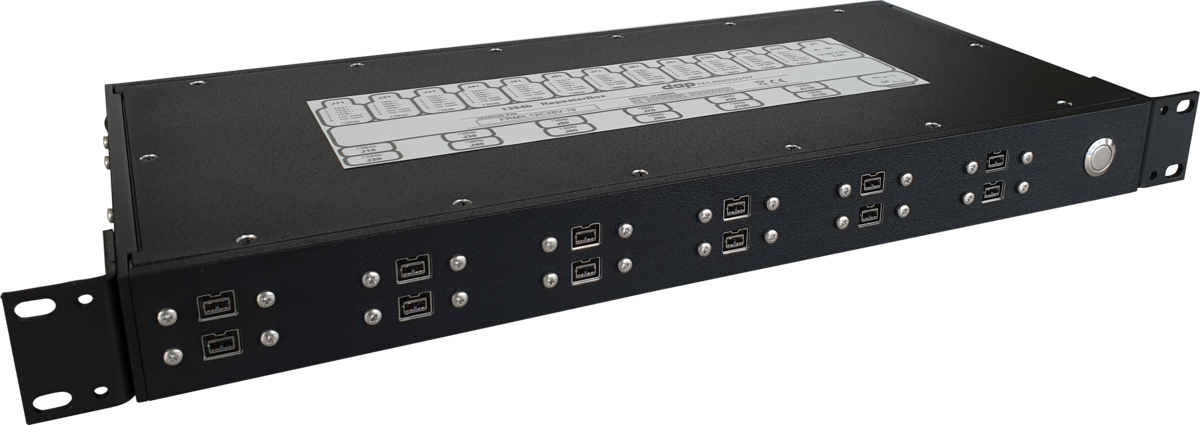

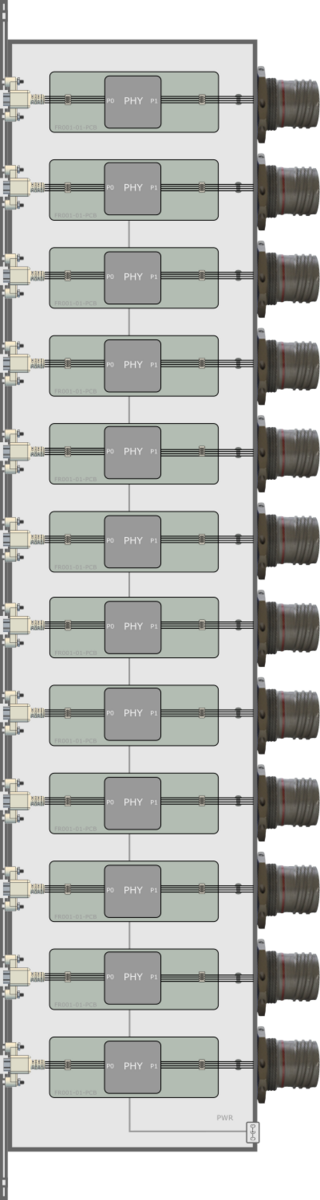

FR-ABMC2-01

- 12-channel adapter
- 2 ports per channel
- 12x 1394b female
- 12a D38999 A shell size with dustcaps
- external AC/DC power supply
- 19" rack mountable enclosure

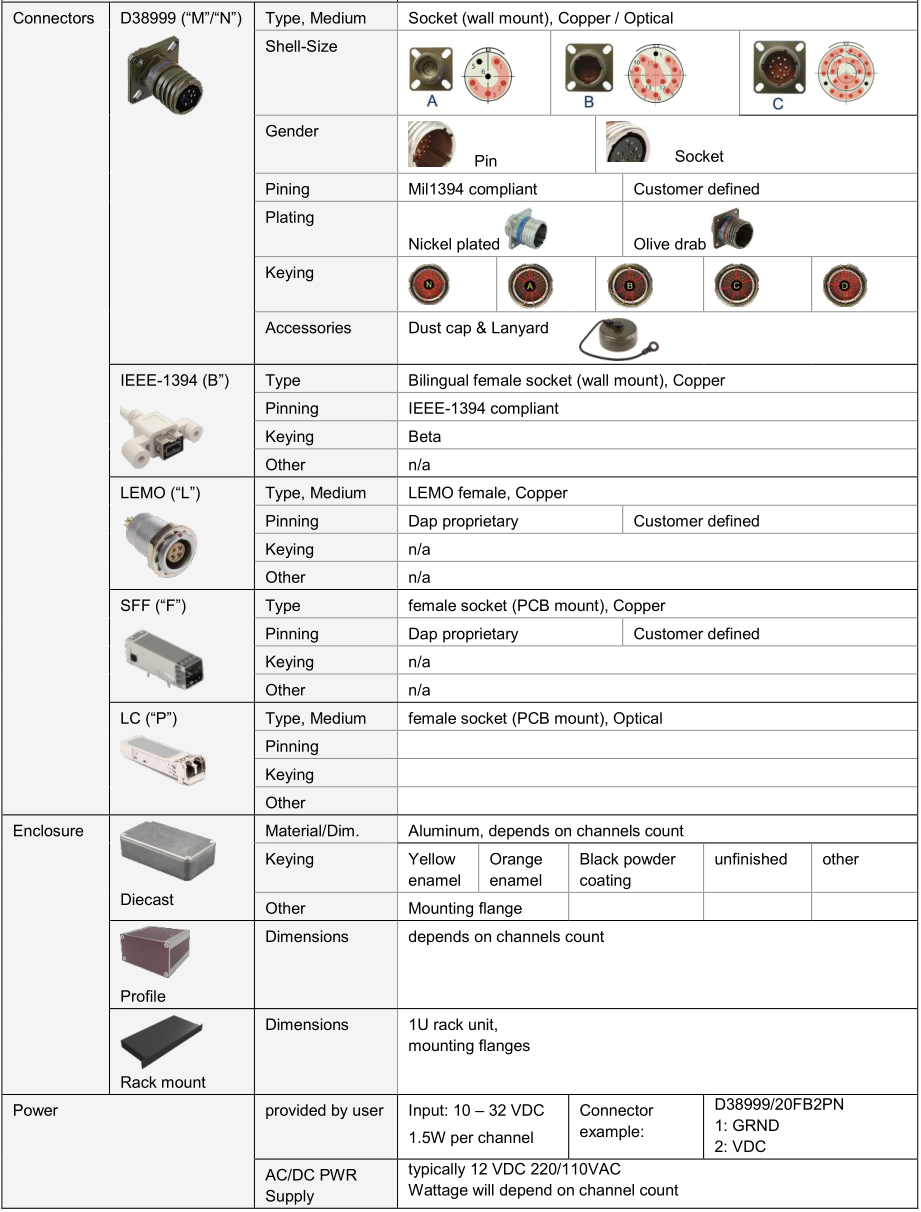

Customization Options

The following table lists various design options available for the various FireRepeater types. Please consult with our sales consultants on how an existing FireRepeater model can be modified using these options. Alternatively all FireRepeaters can be designed from scratch to meet your very specific needs.

You can't find an option you are interested in? Please talk to our sales specialists, there is very high chance that we can help you even though a specific feature/option is currently not listed in the table below.
