Until recently FireSpy Single and Triple used to be thre preferred IEEE 1394 bus analysis instruments. The were perfectly suited to analyze a single bus or the triple redundancy. However, things have changed.
Nowadays, the needs have changed. Having more analysis channels than just three is in hot demand.
Therefore Dap has developed a series of FireSpy Multi Bus analuzers supporting data monitoring and analysis on 4, 6 and even 9 buses simultaneously.

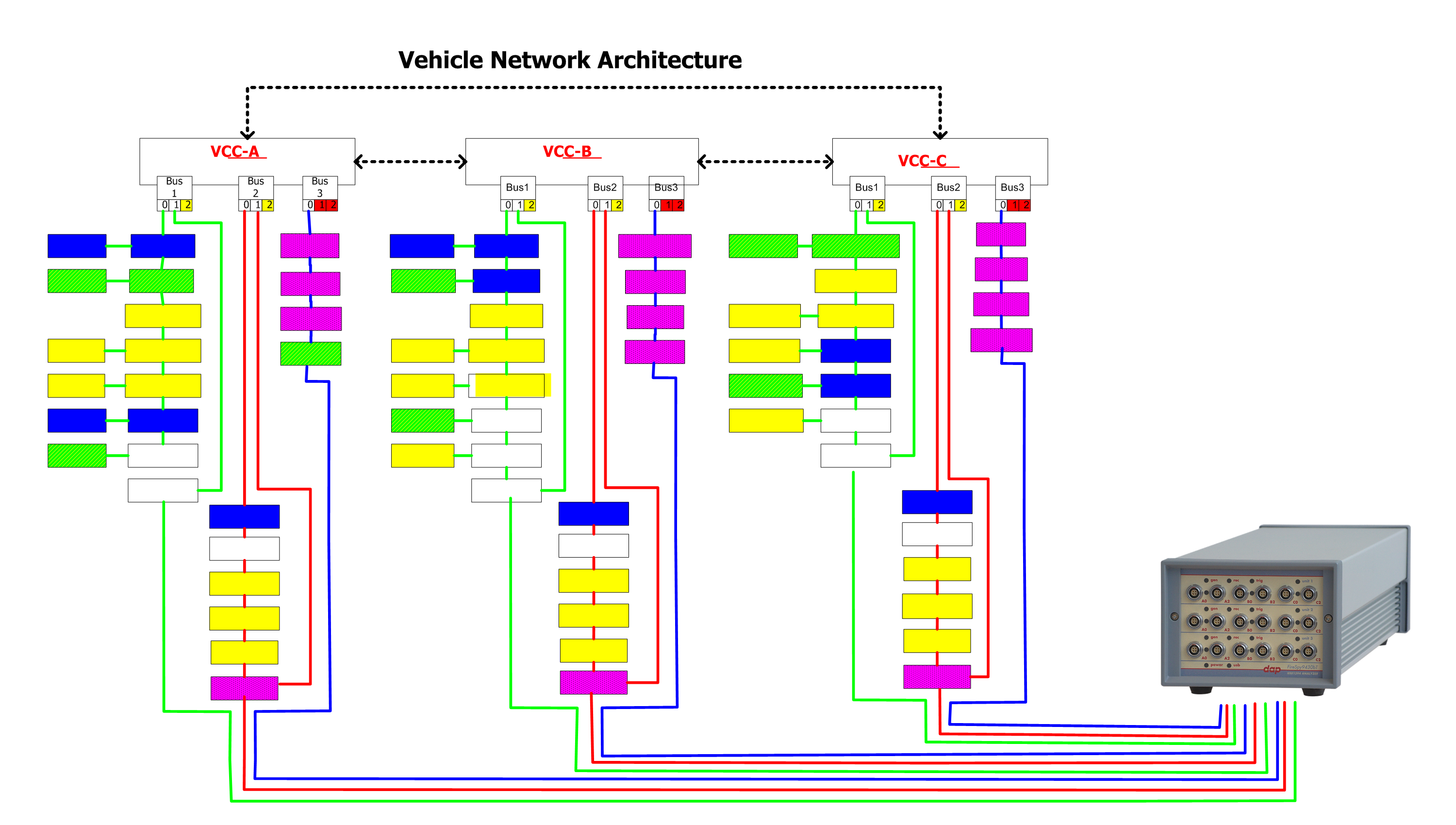

This allows for a variety of connectivity options. For example the FireSpy9x32bT allows the monitor all 9 buses on a 3-branch and triple redundant network.And with all engines perfectly in sync this is best option to analyse such a network.
| Active |
Initial Release/Shipping: Jan.2019 |
|
|
Initial Release/Shipping: Jan. 2019 |
||
| FireSpy4832bT | Initial Release/Shipping: Oct. 2020 | |
| FireSpy4432bT(1) | Initial Release/Shipping: Oct. 2020 | |
| FireSpy6832bT |
Initial Release/Shipping: Dec. 2017 |
|
| FireSpy6432bT(1) |
Initial Release/Shipping: Dec. 2017 |
|
| FireSpy9832bT |
Initial Release/Shipping: May 2017 |
|
|
Initial Release/Shipping: May 2017 |
||
| FireSpy9433bT(1)RGD | Initial Release/Shipping: Oct 2018 | |
| EULA/EOSA EOS |
- | - |
| EOL & EOM | - | - |
Click here for:
|
Product |
IEEE-1394 Connectivity (per bus) | Connections (per Bus) |
Host Interface |
| two (2) Transformer-coupled Ports: S400-S800 Beta |
two (2) Transformer-coupled Bilingual connectors |
USB 3.0 |
|
| two (2) Transformer-coupled Ports: S200-S400 Beta | two (2) Transformer-coupled Bilingual connectors |
USB 3.0 |
|
| two (2) Transformer-coupled Ports: S100 Beta | two (2) Transformer-coupled Bilingual connectors |
USB 3.0 |
|
| FireSpy® 4832bT | two (2) Transformer-coupled Ports: S400-S800 Beta |
two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
| FireSpy® 4432bT | two (2) Transformer-coupled Ports: S200-S400 Beta | two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
| FireSpy® 4432bT1 | two (2) Transformer-coupled Ports: S100 Beta | two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
| two (2) Transformer-coupled Ports: S400-S800 Beta |
two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| two (2) Transformer-coupled Ports: S200-S400 Beta |
two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| two (2) Transformer-coupled Ports: S100-S200 Beta |
two (2) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| three (3) Transformer-coupled Ports: S100-S400 Legacy, S400-S800 Beta | three (3) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| three (3) Transformer-coupled Ports: S200-S400 Beta | three (3) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| three (3) Transformer-coupled Ports: S100-S200 Beta | three (3) Transformer-coupled LEMO connectors |
USB 3.0 |
|
| one (1) Transformer-coupled Port: S100-S400 Legacy, S400-S800 Beta | one (1) Transformer-coupled D38999 connector |
USB 3.0 |
|
| one (1) Transformer-coupled Port: S200-S400 Beta | one (1) Transformer-coupled D38999 connector |
USB 3.0 |
|
| one (1) Transformer-coupled Port: S100-S200 Beta | one (1) Transformer-coupled D38999 connector |
USB 3.0 |
