FireSpy® 3422bT/3822bT

The FireSpy3422bT and FireSpy3822bT bus analyzers are DapTechnology's latest 3-bus IEEE-1394 protocol analyzer. Based on the 4th generation FireSpy analyzer architecture the FireSpy3422bT/3822bT is the most advanced 1394 test equipment in the market. The FireSpy3422bT/3822bT in fact combine three FireSpy analyzers in one single instrument. They comprises a significantly more powerful on-board processor and improved connectivity to the host.

The seamless integration of the SAE AS5643 protocol makes the FireSpy3422bT/3822bT the preferred tool for many Aerospace & Defense development tasks. DapTechnology has taken considerable efforts to fully support the AS5643 protocol in all major functional areas of the FireSpy3422bT/3822bT and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

4th Generation Hardware

In order to support multi-bus analysis more efficiently this new generation of 1394 bus analyzers has been completely re-architectured.

The FireSpy3422bT/3822bT have three 1394 nodes connected to three synchronized analysis engines. They are controlled by a dual core ARM processor running at 667MHz. Each node is connected to two 1394 ports. All ports of each node are connected to a 1394 bilingual connector in compliance with the 1394 standard.

The FireSpy3422bT/3822bT are equipped with 5 GB internal memory and extensive hardware filtering and trigger possibilities. The analyzer can be connected into a host computer using its PCIe x4 (or higher) interface. On the host you can control the FireSpy using a graphical user interface to analyze and display the bus traffic in a user-friendly way; or you can use the API to program your own control software.

Life Cycle Status

active
recommended for new designs
Initial Release/Shipping: Nov 2018

Key features

  • IEEE 1394-2008 Beta
  • Supported speeds depend on exact model:
    • FireSpy3822bT: two (2) Transformer-coupled Ports (per bus) : S400-S800 Beta
    • FireSpy3422bT: two (2) Transformer-coupled Ports (per bus) : S200-S400 Beta
    • FireSpy3422bT1: two (2) Transformer-coupled Ports (per bus) : S100-S200 Beta
  • Host connection via PCIe Gen2  x4 (4-lane)
  • On-board dual-core 667 MHz ARM processor and programmable logic
  • 5GByte internal memory
  • GUI and API for WindowsTM Operating Systems
  • 3 analyzing nodes with a total of 6 1394 ports
  • all ports are active transformer coupled
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
    • Mil1394 Player
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with LabVIEWTM Wrappers

Block diagram

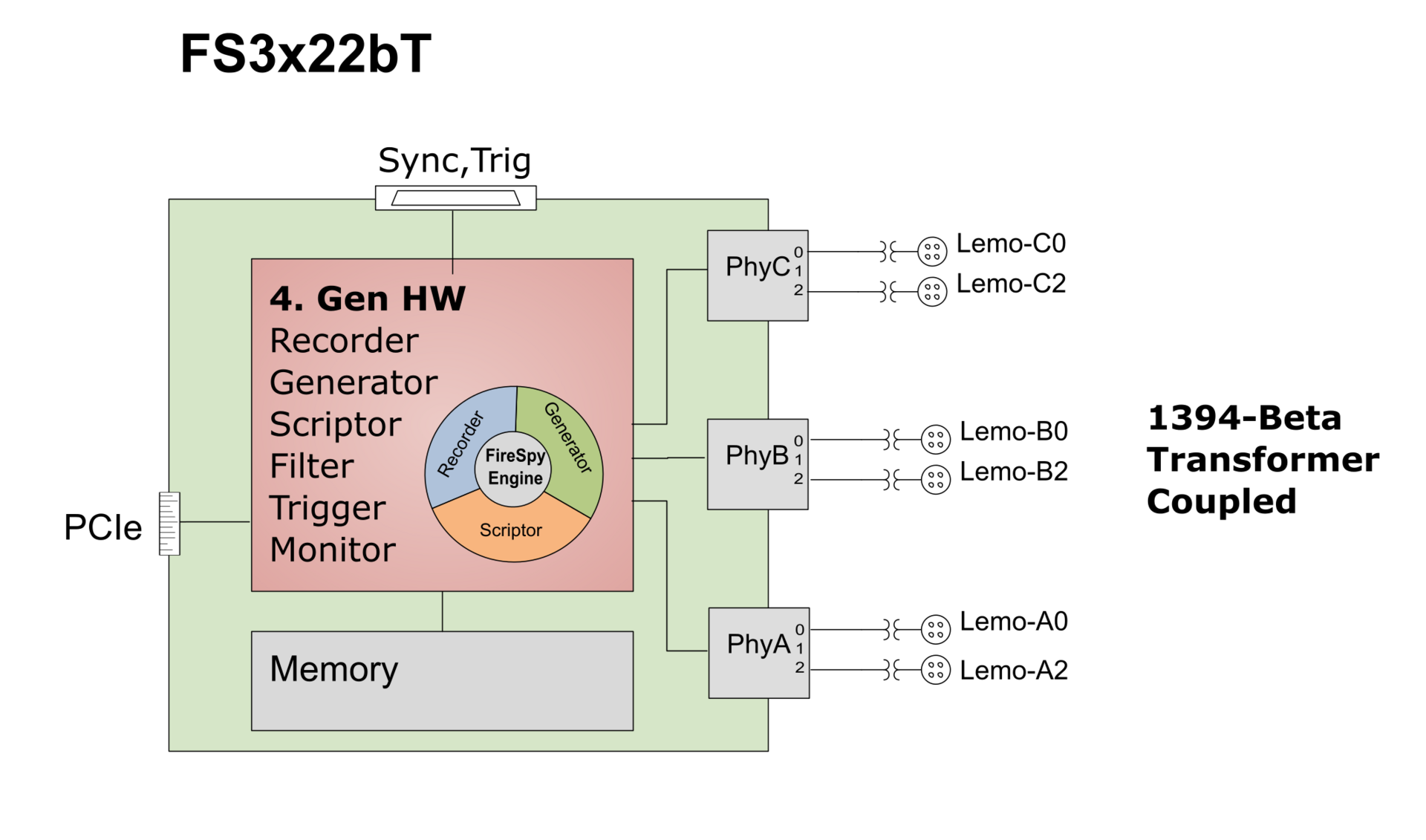

1394 and AS5643 Bus Analyzer - FireSpy3433bT/3822T Block diagram

FireSpy® 3422bT/3822bT specifications

Dimensions:

PCIe, card length approx. 205 mm
Power Requirements: max. 25 W
Regulatory compliance: FCC Class A , CE
Connections:

PCIe x4 Gen2 interface to host computer

6x LEMO connectors
Part Numbers:

FS3822BT (FS3822BTAS5643 with AS5643 SW protocol package)

FS3422BT (FS3422BTAS5643 with AS5643 SW protocol package)
Codes:

ECCN: 3A992.a

HST: 8471.90.0000

SW Add-on modules:









AS5643 protocol software pack

SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

FireSpy® 3422bT/3822bT media files

Product Image(s)

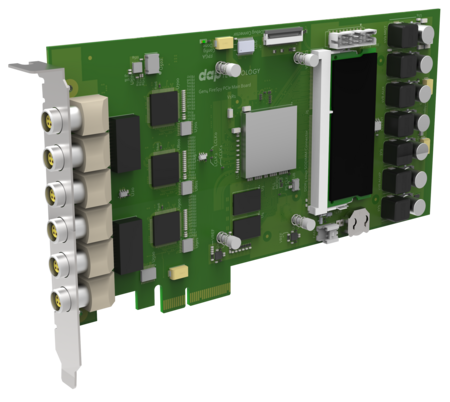

1394 and AS5643 Bus Analyzer - FireSpy3422bT/3822bT Product Photo

Architecture Drawing(s):

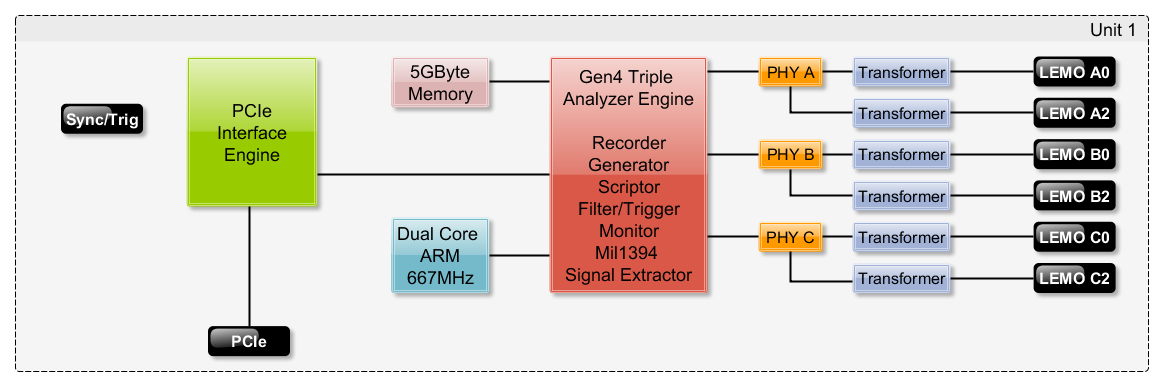

1394 and AS5643 Bus Analyzer - FireSpy3422b/T3822bT Architecture

FireDiagnostics Suite

The FireDiagnostics Suite is the most comprehensive collection of 1394 analysis, simulation and interface tools for a wide range of applications. Apart from well established and hardware assisted analyzer tools like Monitor, Recorder, Generator, Commander, Scriptor and Mil1394 Signal Monitor, the suite also offers a set of software tools designed to allow the integration of the FireSpy products in a wide variety of testing applications, as well as extend customization of its functionality beyond the baseline feature set provided by DapTechnology.

FireSuite API

The foundation for all software tools included in the FireDiagnostics Suite is formed by the Application Programming Interface (API). With its interfaces for a wide range of development environments using C/C++ or LabVIEWTM on WindowsTM Operating Systems, the application of FireSpy analyzers is extremely flexible. With its feature-rich function library, all hardware assisted analyzer tools like the Monitor and Recorder can be controlled as well as more low-level 1394 bus functions.

Protocol Support

A cornerstone of FireDiagnostics Suite functionality is the unparalleled level of support for high-level protocols. With IEEE-1394 being the basic data exchange mechanism application specific protocols for the PC & storage environment (IPv4, SBP2), consumer electronics (AV/C, HAVi), Automotive Infotainment (AMI-C), Industrial Imaging (IIDC) have been successfully deployed. In recent years AS5643 has been adopted for use within Aerospace and Defense and largely fueled the continuous growth of IEEE-1394.

READ MORE

FireSpy® 3422bT/3822bT sales info

Package Contents

  • FireSpy3422bT/3822bT
  • 3x LEMO-to-Beta cables ( CAFS4G ), additional cables can be purchased separately

Delivery time

Typically 4 weeks. Please contact sales(at)daptechnology.com for more detailed information.

Warranty

Standard: 48 months, limited.
Options: Additional 1-year SW/FW Support packages may be purchased.

Support

All products will be supported on a 24 hours response basis and free of charge during the warranty period. For support questions please contact: sales(at)daptechnology.com
Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

Educational purposes

For those educational institutions that would like to use our high-specification IEEE-1394 analyzer for educational purposes only, we have a special discount offer. Our FireSpy® software which runs automatically in demo-mode without the use of a FireSpy® has great educational properties. This software can be used for free by everyone and is of great value for learning IEEE-1394. In order to obtain more details about this offer, please contact: sales(at)daptechnology.com

Price Info / Quote Request

Please contact sales(at)daptechnology.com for current pricing.
