IEEE-1394 Cables and AS5643 Harnesses

DapTechnology provides three different types of cable/harness categories:

Standard IEEE-1394 cables

Standard IEEE-1394 cables are available standalone, part of the individual product packages (i.e. FireSpy, ...) or an optional accessory for the Interface Solutions cards.

COTS off-board Harnesses

This type of COTS harnesses is available on its own, as part of the individual product package (i.e. FireSpys), or as an optional accessory for the Interface Solutions cards.

Custom Cables and Harnesses

The custom cables are entirely built to the specification provided by the customer. They often are built in combination with a specific Repeater or Media Converter configuration and offer a wide choice of cable media, cable types and connectors. The pin-out can follow the AS5643 standard or can be assigned entirely as requested by the customer's own choice.

Standard IEEE-1394 Cables

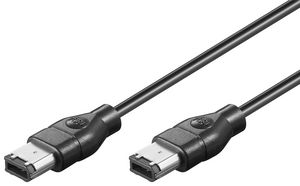

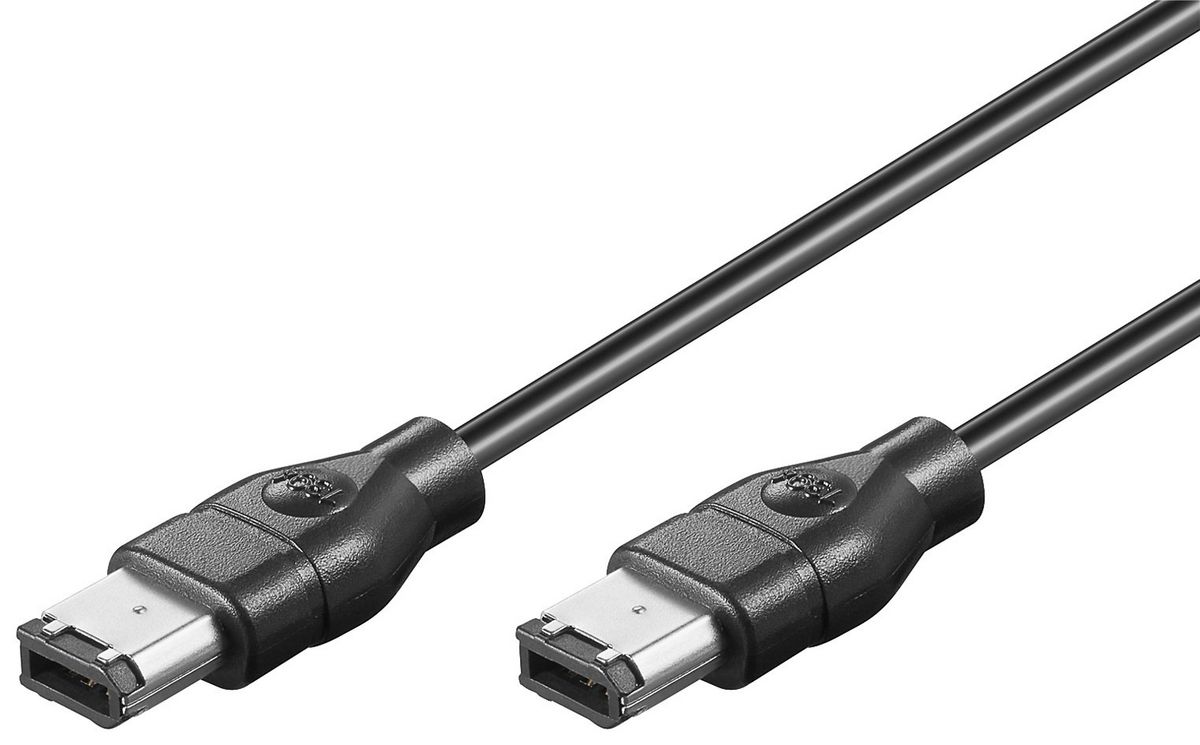

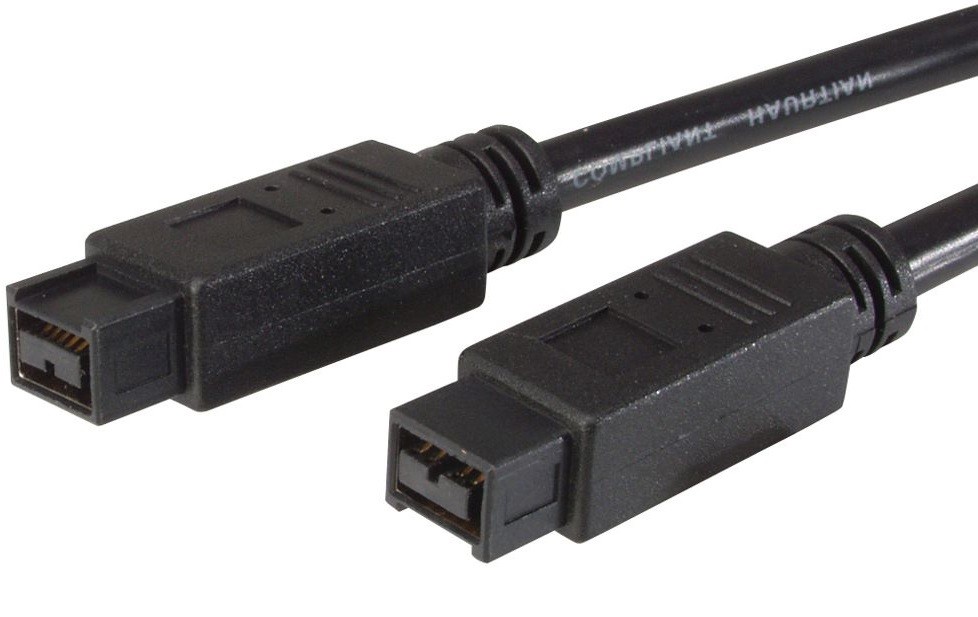

1394a cable

For Product(s): S400 Legacy products (FS400)
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
CAFW66

Termination 1:
1394a, 6-pin (male)

Termination 2:
1394a, 6-pin (male)

Length:
1.8 m

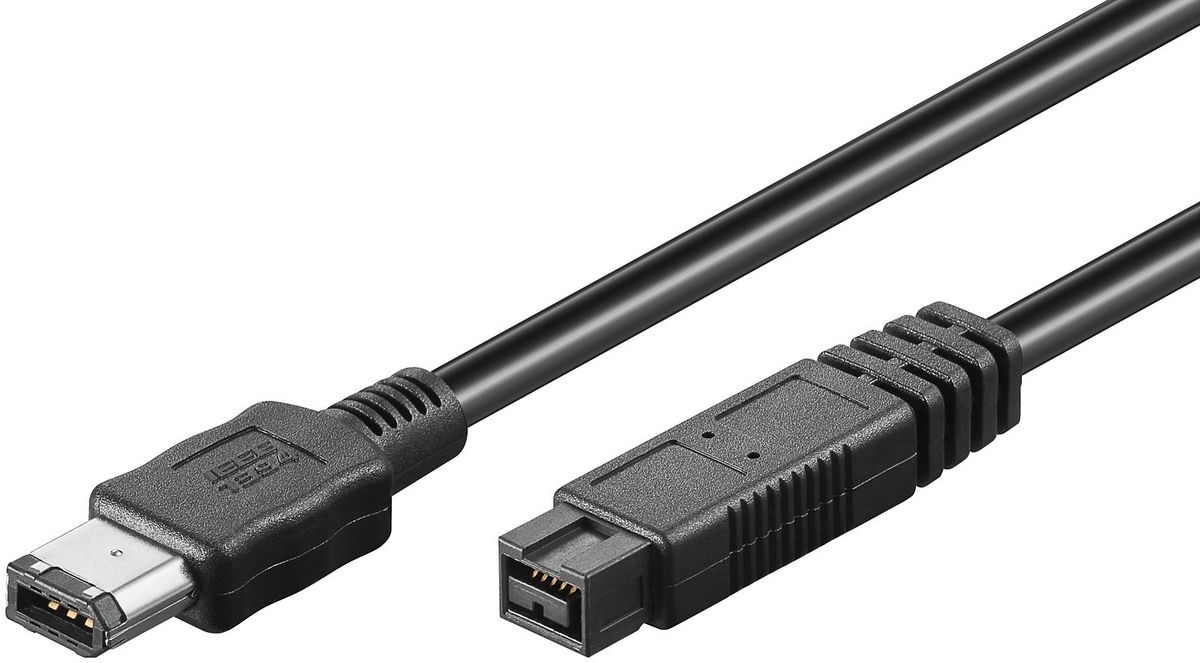

1394a-1394b cable

For Product(s): For all products with 1394a connector
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
CAFW69

Termination 1:
1394a, 6-pin (male)

Termination 2:
1394b, Bilingual (male)
9-pin

Length:
1.8 m



1394b cable

For Product(s): For all products with 1394b connector
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
CAFW99

Termination 1:
1394b, Beta (male)
9-pin

Termination 2:
1394b, Beta (male)
9-pin

Length:
2.0 m

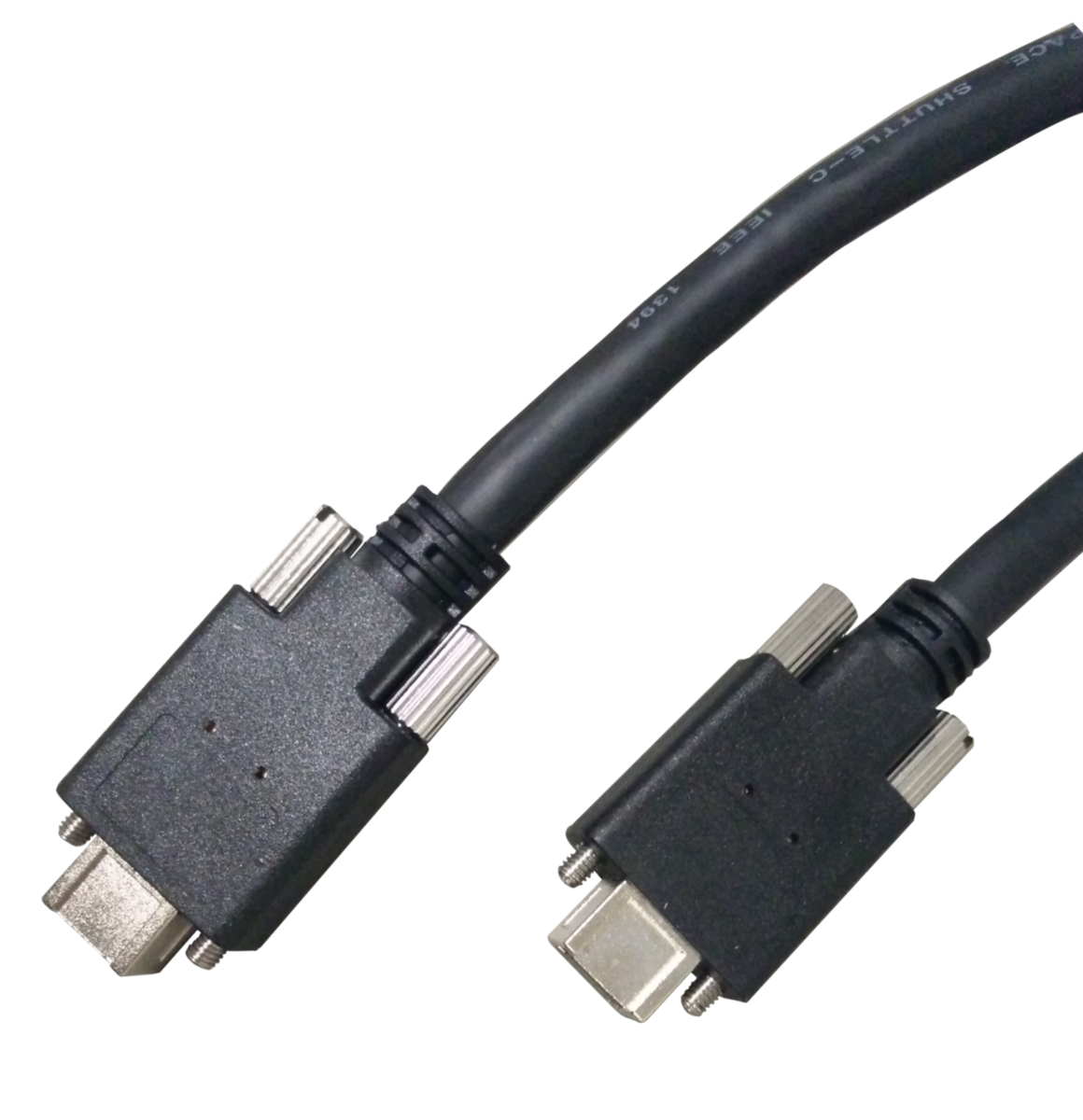

CAFW99S 1394b, Beta (male)
9-pin, screw-lock		 1394b, Beta (male)
9-pin, screw-lock		 2.0 m



1394 Connectivity - Standard 1394a Cable 6pin - 6pin1394 Connectivity - Standard 1394b Cable Beta 9pin - 9pin
CAFW99
1394 Connectivity - Standard 1394a Cable 6pin - 6pin1394 Connectivity - Standard 1394b Cable Beta ScrewLock 9pin - 9pin
CAFW99S

1394b Coupler

Part number:

Termination 1:

Termination 2:

Dimensions:

BLFCouplerBLF 1394b, Bilingual (female), 9-pin 1394b, Bilingual (female), 9-pin 33x18.5x15 mm



1394 Connectivity - Standard 1394a Cable 6pin - 6pin1394 Connectivity - 1394b Coupler Bilingual
BLFCouplerBLF

COTS Harnesses

LEMO-Beta cable

For Product(s): For all FireSpys with LEMO connectors (FS-Gen4, FS3852)
Documents: -
Cable Type: standard 1394 (<11ft), GoreQuadrax (>11ft)
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
BEMxF1LEM
(was CAFS4G for 5ft)

Termination 1:
1394b, Beta (male)
9-pin

Termination 2:
LEMO male (EGG.0B.304)

Length:
TBD
BEM5F1LEF

Termination 1:
1394b, Beta (male)
9-pin

Termination 2:
LEMO female (PHG.0B.304)

Length:
TBD
The harnesses above are available in 3ft, 5ft, 7ft and 10ft variants with standard 1394 cable.
For longer lengths the harness is built with with Gore Quadrax (wire gauge according to SAE cable guide) but custom wire gauges are possible on request.
Please talk to our sales specialists for such variants.



shown as BEMxF1LEM

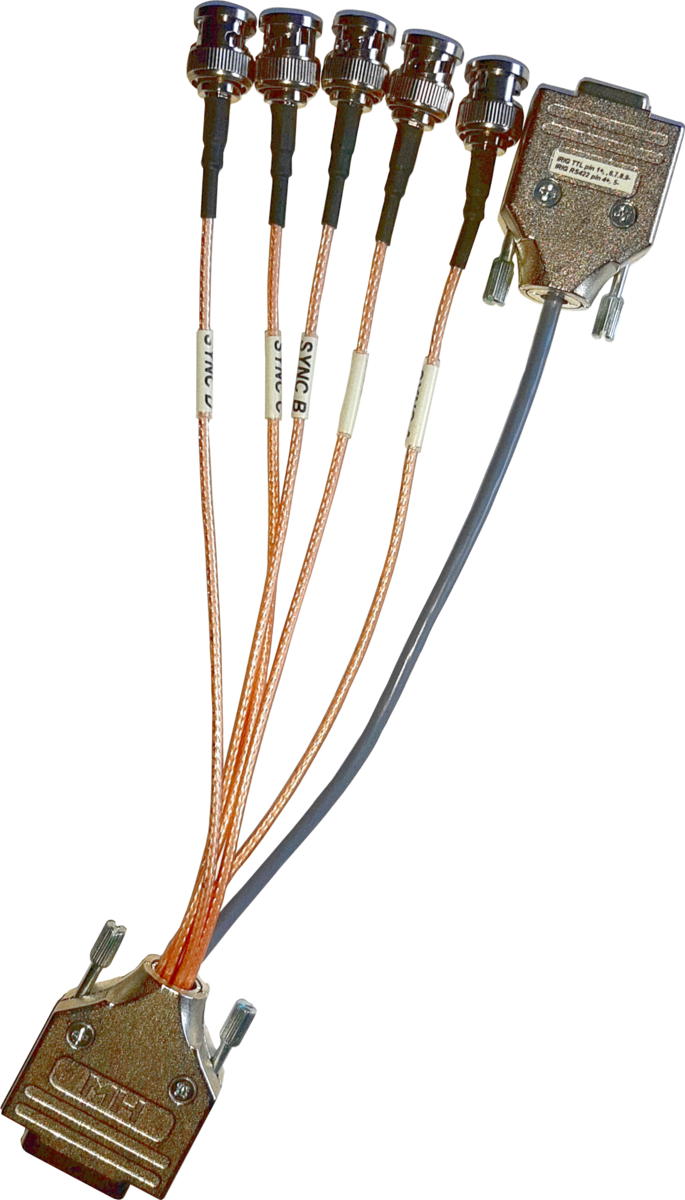

1394 VHDCI Spider Cable

For Product(s): Triple FireSpys with VHDCI connnector
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
CA686-91.5

Termination 1:
1x VHDCI connector,
68-pin

Termination 2:
6x 1394 Beta (male),
9-pin

1x SUBD

Length:
1.5 m



VHDCI Spider Cable

1394 SCSI2 Spider Cable

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapter
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
PMC3CH3FBM

Termination 1:
1x SCSCI2 connector,
68-pin

Termination 2:
9x 1394 Beta (male),
9-pin

Length:
3 feet

PMC3CH5FBM

as above

as above

5 feet

PMC3CH3FLM

as above

9x 1394 Legacy (male),
9-pin

3 feet

PMC3CH5FLM

as above

as above

5 feet

PMC3CH7FLM

as above

as above

7 feet
SCSI2 Spider Cable

Mil1394 Beta - D38999 cable

For Product(s): FireSpy, ....
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
BEMnF1MS1

Termination 1:
1394b, Beta (male)
9-pin

Termination 2:
D38999/26FA35SN

Length:
TBD

RX/TX Crossover:
Yes
BEM5F1MS1-S

Termination 1:
1394b, Beta (male)
9-pin

Termination 2:
D38999/26FA35SN

Length:
5 ft

RX/TX Crossover:
No
The harnesses above are available lengths between 1 - 40ft variants.

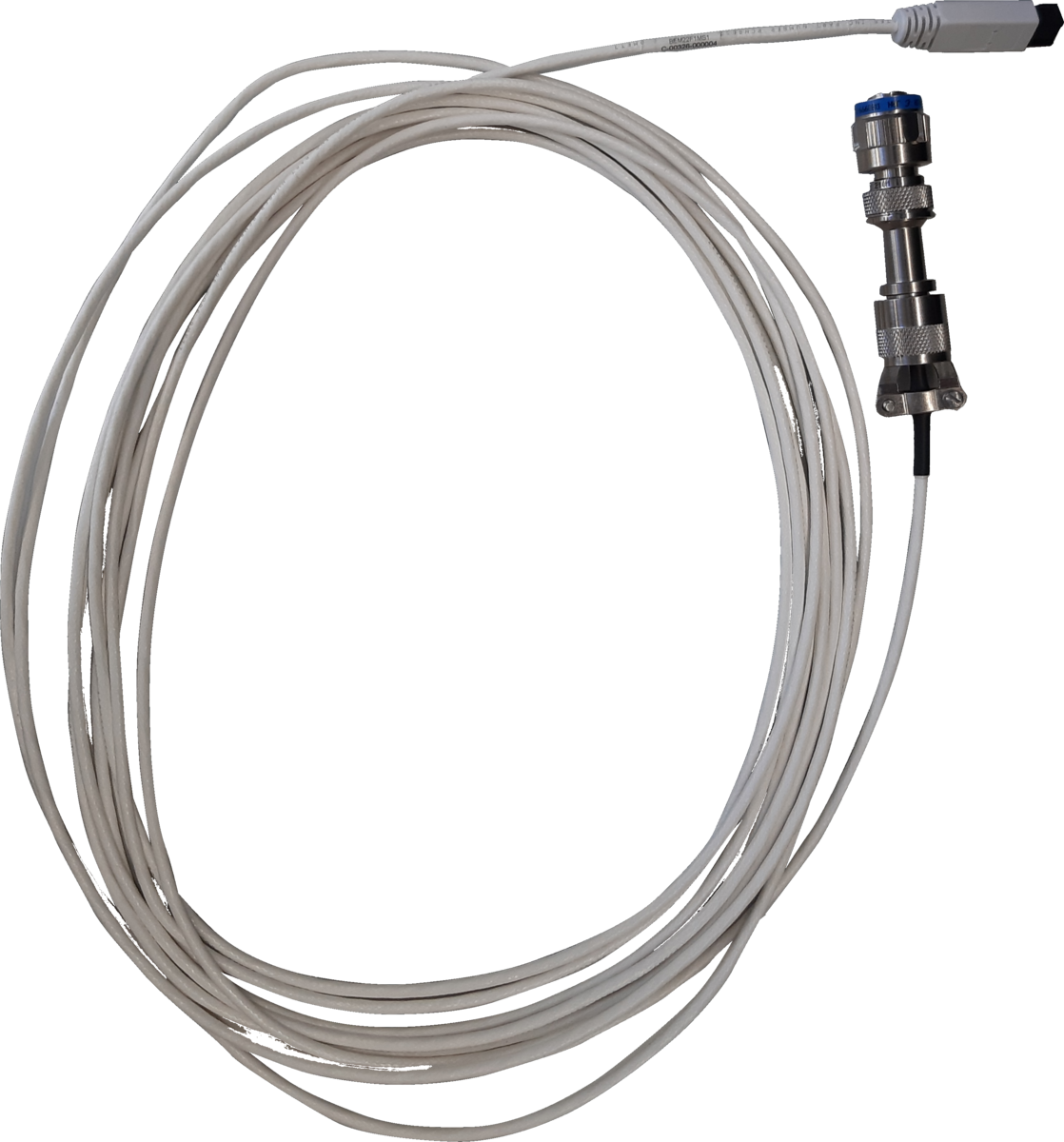

shown as BEM22F1MS1

Mil1394 SCSI2 Spider Cable

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapater
Documents: -
Cable Type: Gore Quadrax 26AWG
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
PMC3CH3FNT

Termination 1:
1x SCSCI2 connector,
68-pin

Termination 2:
9x unterminated cable

Length:
3 feet

PMC3CH3FNT-IS

as above

9x unterminated cable
1x IRIG and 3x SYNC

3 feet

The harnesses above are also available in 5ft, 10ft, 15ft, 20ft and 50ft variants.
The harnesses above can also be built with termination connectors (sockets and/or plugs) of the following type(s): 38999, LEMO
The harnesses can also be built with 24AWG or 22AWG with less conenctions. Details depend on the cable gauge used.
Mil1394 SCSI2 Spider Cable

1394b Coupler

Part number:

Termination 1:

Termination 2:

Dimensions:

BLFCouplerBLF 1394b, Bilingual (female), 9-pin 1394b, Bilingual (female), 9-pin 33x18.5x15 mm



1394 Connectivity - Standard 1394a Cable 6pin - 6pin1394 Connectivity - 1394b Coupler Bilingual
BLFCouplerBLF

Mil1394 SCSI2 Spider Cable with 19" panel

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapter
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.100

Part number:
PMC3CH5F19FP

Termination 1:
1x SCSCI2 connector,
68-pin

Termination 2:
9x 1394 Bilingual (female),
9-pin

Length:
5 feet

PMC3CH5F19FP-IS

as above

9x 1394 Bilingual (female),
9-pin
1x IRIG and 3xSYNC

5 feet

The harnesses above are also available in 5ft, 10ft, 15ft, 20ft and 50ft variants.
The harnesses above can also be built with termination sockets of the following type(s): 38999, LEMO


shown as PMC3CH5F19FP
shown as PMC3CH5F19FP-IS
shown as PMC3CH5F19MILASNAB-IS

Mil1394 SFF-SFF cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF1F4SFF
SFF1F3SFF

Termination 1:
SFF-8614

Termination 2:
SFF-8614

Length
1 foot
SFF5F4SFF
SFF5F3SFF		 as above as above 5 feet

The harnesses above are also available in 3ft, 7ft,10ft, 15ft, 20ft and 50ft variants.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



shown as SFF5F4SFF

Mil1394 SFF-NT cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4NT
SFF5F3NT

Termination 1:
SFF-8614

Termination 2:
4x unterminated cable
3x unterminated cable

Length
5 foot

The harnesses above are also available in 1ft, 3ft, 7ft, 10ft, 15ft, 20ft and 50ft variants.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



shown as SFF5F4NT

Mil1394 SFF-LEMO (m/f) cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4LEM
SFF5F3LEM

Termination 1:
SFF-8614

Termination 2:
4x LEMO male
3x LEMO male

Length
5 foot
SFF5F4LEF
SFF5F3LEF		 SFF-8614 4x LEMO female
3x LEMO female		 5 foot

The harnesses above are also available in 1ft, 3ft, 7ft, 10ft, 15ft, 20ft and 50ft variants.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



shown as SFF5F4LEM

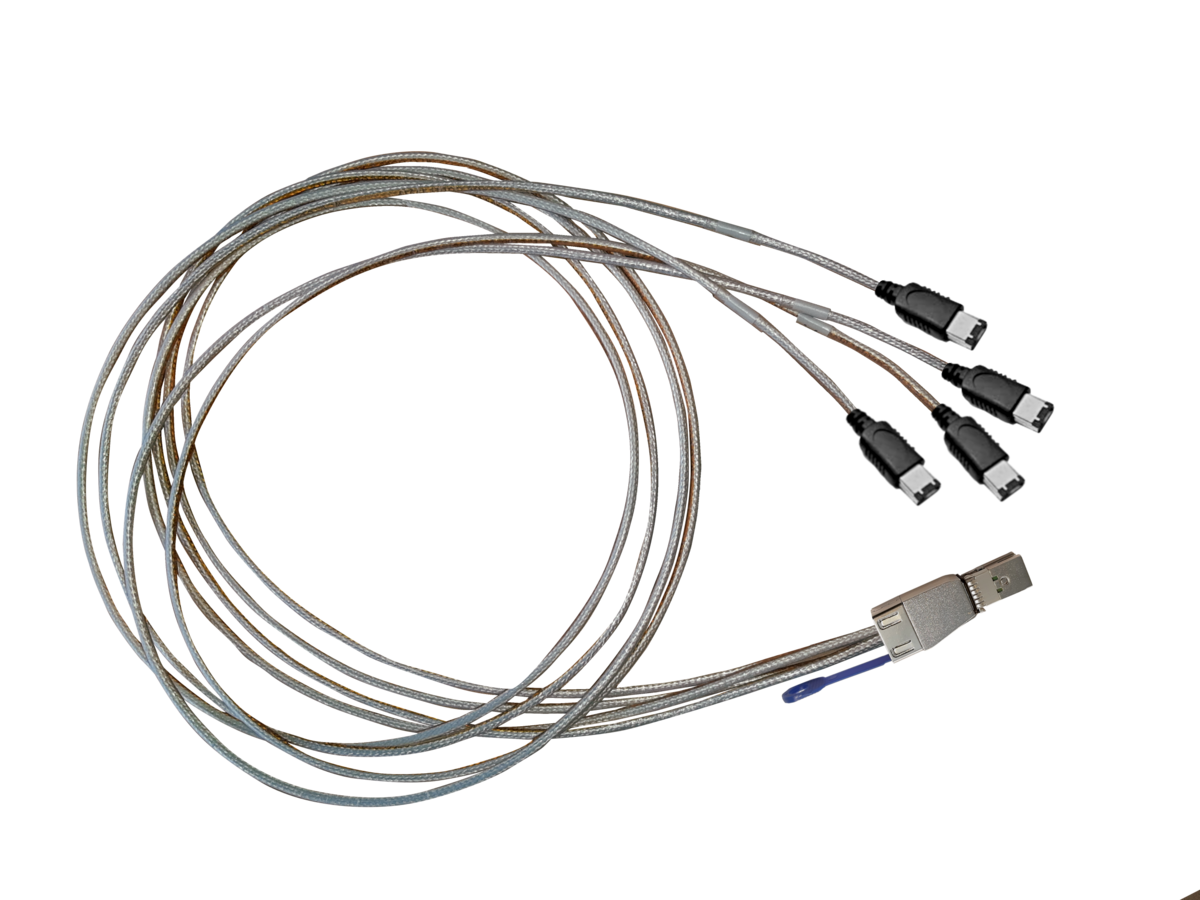

Mil1394 SFF-1394b male cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4BEM
SFF5F3BEM

Termination 1:
SFF-8614

Termination 2:
4x 1394b Beta male
3x 1394b Beta male

Length
5 foot

The harnesses above are also available in a 10ft variant.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



shown as SFF10F4BEM

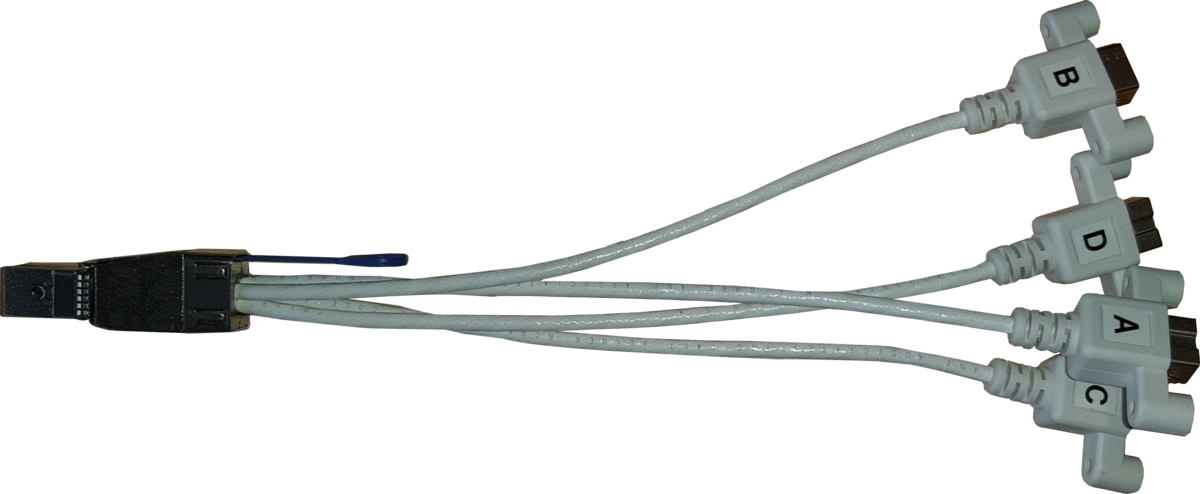

Mil1394 SFF-1394b female cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4BLF
SFF5F3BLF

Termination 1:
SFF-8614

Termination 2:
4x 1394b Bilingual female
3x 1394b Bilingual female

Length
5 foot

The harness above is also available in other lengths as special orders.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



shown as SFF1F4BLF

Mil1394 SFF-1394a 6pin (m) cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4L6M
SFF5F3L6M

Termination 1:
SFF-8614

Termination 2:
4x 1394a 6pin male
3x 1394a 6pin male

Length
5 foot

The harnesses above are also available in a 10ft variant.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



Mil1394 SFF-Mil38999 (m/f) cable

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F4MIM-...
SFF5F3MIM-...

Termination 1:
SFF-8614

Termination 2:
4x 38999* male
3x 38999* male

Length
5 foot
SFF5F4MIF-...
SFF5F3MIF-...		 SFF-8614 4x 38999* female
3x 38999* female		 5 foot

* Due to numerous options for 38999 connectors (material, size, pinning, keying, lanyard, ...) a detailed connector requirement has to be delveloped as part of the sales process.

The harnesses above are also available in 1ft, 3ft, 7ft, 10ft, 15ft, 20ft and 50ft variants.
Besides the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.



Mil1394 SFF Spider Cable with IRIG and Sync, 19" panel

For Product(s): FireTrac4x24bT, FireTrac3x24bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

SFF5F419PBLF-IS
SFF5F319PBLF-IS

 3x SFF-8614

12(9)x 1394 Bilingual (female) 9-pin,
permanently attached to 19"-Panel,
3x IRIG and 4(3)xSYNC

5 feet

The harnesses above are also available in 10ft, 15ft, 20ft and 50ft variants.
The harnesses above can also be built with termination sockets of the following type(s): Mil38999 m/f, LEMO m/f

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

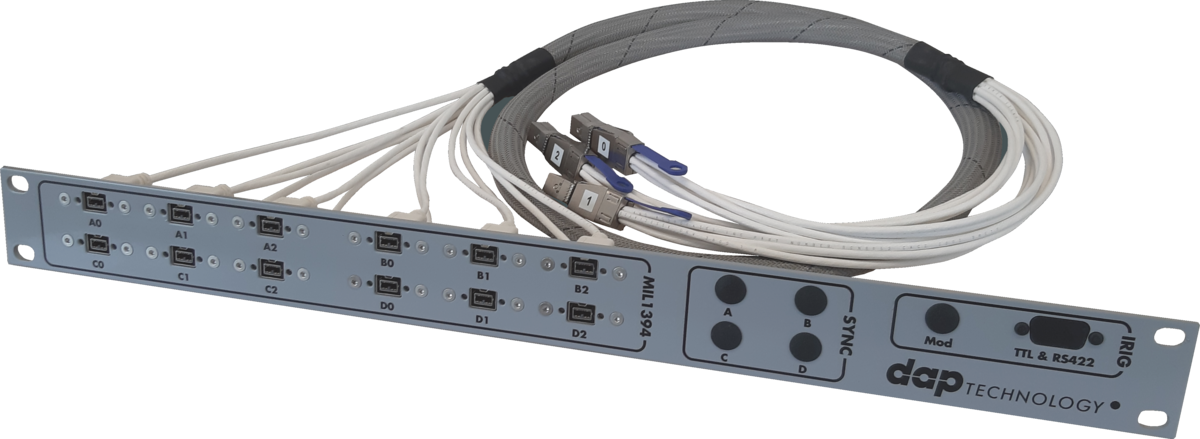

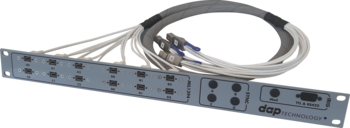

shown as SFF5F419PBLF-IS

Mil1394 SFF Spider Cable with 19" panel

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFF5F419PBLF
SFF5F319PBLF

Termination 1:
3x SFF-8614

Termination 2:
12(9)x 1394 Bilingual (female) 9-pin,
permanently attached to 19"-Panel

Length:
5 feet

The harnesses above are also available in 10ft, 15ft, 20ft and 50ft variants.
The harnesses above can also be built with termination sockets of the following type(s): Mil38999 m/f, LEMO m/f

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.
shown as SFF5F419PBLF

Mil1394 SFF Connection Dongle

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: -
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
SFFDongleAB&CD

Termination 1:
SFF-8614

Connections:
Port Ax connected to Port Bx
Port Cx connected to Port Dx

Length:
-

SFFDongleAD&BC

 SFF-8614 Port Ax connected to Port Dx
Port Bx connected to Port Cx

-

SFFDongleAB

 SFF-8614 Port Ax connected to Port Bx

-

SFFDongleAC

 SFF-8614 Port Ax connected to Port Cx

-

SFFDongleBC

 SFF-8614 Port Bx connected to Port Cx

-
Warning: The usage of the SFF connectivity in this device is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac or FireAdapter.
shown as SFFDongleAB&CD

Mil1394 Dsub to BNC/Dsub for IRIG and Sync

For Product(s): FireTrac4x24bT, FireTrac3x24bT
Documents: -
Cable Type: Coax
Codes: ECCN EAR99, HST: 8544.49.1000

Part number:
DSU1F6BNC-IS

Termination 1:
Dsub15 (male)

Termination 2:
4x BNC (male):SYNC1-4
1x BNC (male): IRIG-B122 modulated

1x Dsub9 (female):
- IRIG-B002 TTL
- IRIG-B002 RS422

Length
1 foot
DSU1F6NT-IS Dsub15 (male) no termination, connections as above 1 foot
The harnesses above can also be built in other lengths (e.g. 3ft, 5ft, ...).

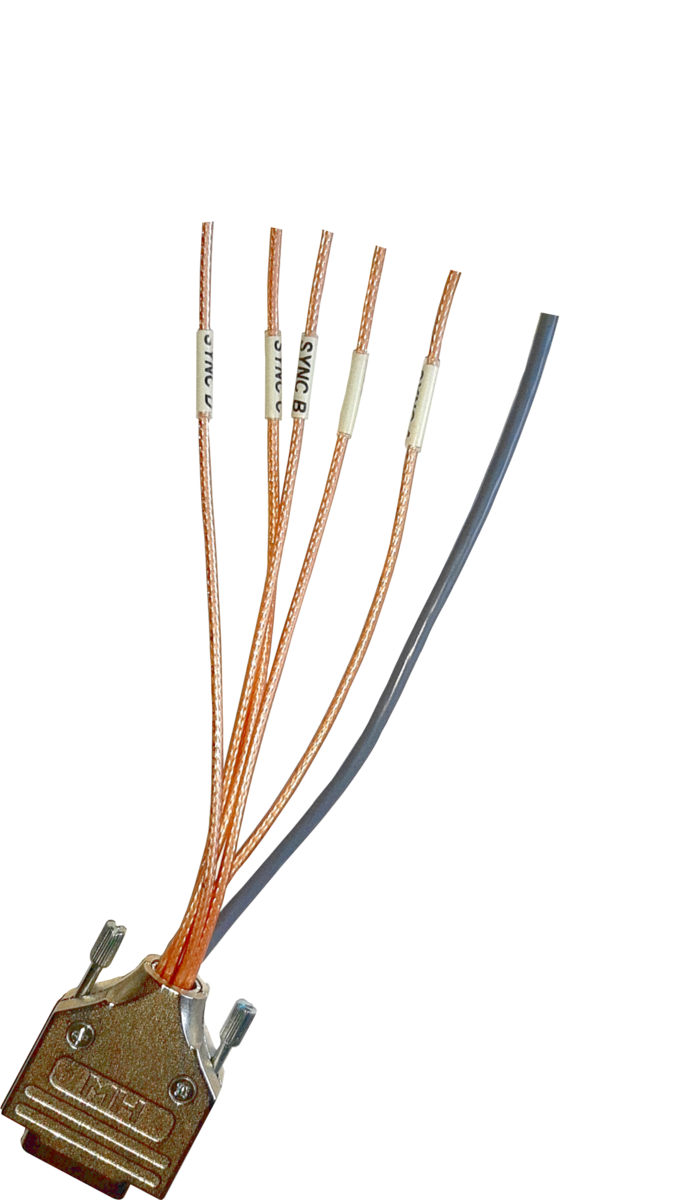

shown as DSU1F6BNC-IS

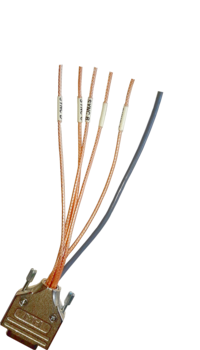

shown as DSU1F6NT-IS

Custom Cables and Harnesses

Full customization

We can build any cable for you. Over the years we have gained significant experience working with a wide variety of cable types (copper, optical) and connectors (1394, 38999, LEMO, ...) and we can advise you what is best to maintain signal integrity, durability, ...

Of course all the specialty cables/harnesses are built using the same high-quality standards as our standard cables and COTS harnesses.

Please discuss with us your specific needs and we are more than happy to help you find a technically sound and cost-effective solution.

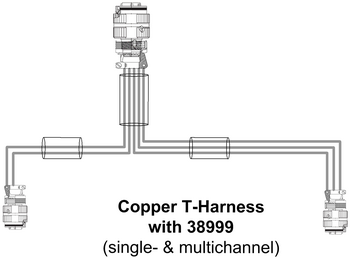

Examples and Ideas:

Cables and Harnesses sales info

For COTS Harnesses and Custom Cables please contact DapTechnology or DapUSA directly by sending an email to sales(at)daptechnology.com for additional information about pricing and availability!
