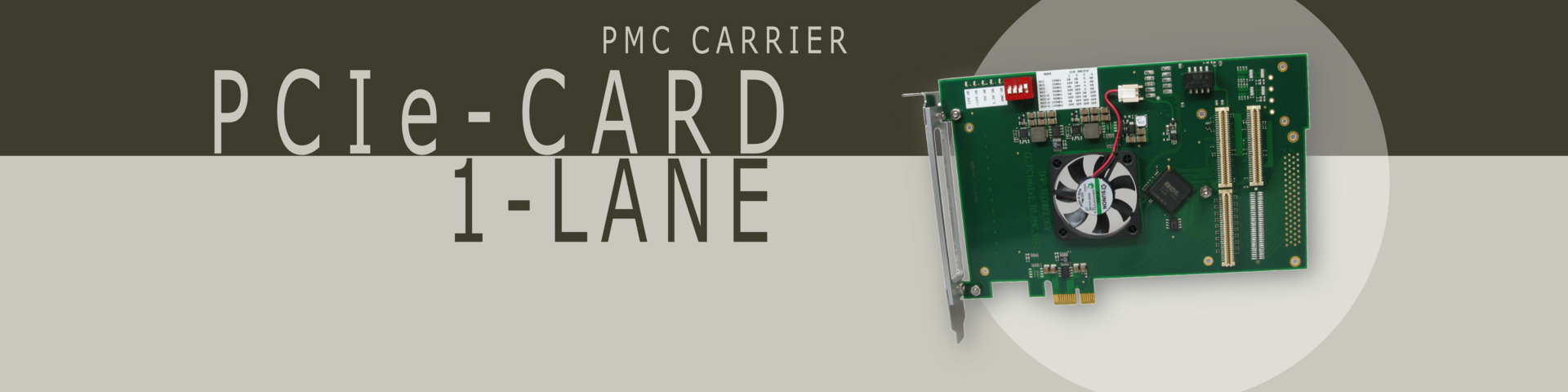

Looking for a way to plug your PMC mezzanine card into a computing platform with a 1-lane PCIe slot?
Well, the CC_PCIeG1x1_to_PMC is your answer! It is effective, field tested and compliant with all applicable standards.
| PCI Express Interface | number of PCI Express lanes, max speed | 1 / 2.5Gbps |
| form factor | standard height, half length | |
| compliance | PCI Express Base 1.1 | |
| Bridge | chip type | Tundra Tsi384 |
| compliance | PCI Express PCI/PCI-X Bridge 1.0 | |
| PCI-to-PCI Bridge Architecture 1.2 | ||
| PMC Interface | PCI width | 32 or 64 bits |
| PCI speed | 25, 33, 50 or 66 MHz | |
| PCI-X width | 32 or 64 bits | |
| PCI-X speed | 50, 66, 100 or 133 MHz | |
| width selection | automatic | |
| speed selection | semi-automatic (switch settings limit bus speed) | |
| IO Voltage | 3.3V | |
| card detection | green LED | |
| compliance | PCI Local Bus 3.0 | |
| PCI-X 2.0 (mode 1 only) | ||
| PCI Bus PMI 1.2 | ||
| Power System | to PMC | 12V (25W), -12V (2W), 5V (25W), 3.3V (15W) |
| PMC card power | 25W | |
| consumption | 15W | |
| Device | P/N |
CC_PCIeG1x1_TO_PMC |
| Compliance | CE, FCC, RoHS, REACH | |
| Export Control: | no license required (NLR) | |
| HTS: | 8471.80.10.00 |
Please contact DapTechnology or DapUSA directly by sending an email to sales(at)daptechnology.com for additional information about pricing and availability!
