FireSpy® 9433bTRGD/9833bTRGD

The FireSpy9433bTRGD and FireSpy9833bTRGD bus analyzer are world’s only 9-bus IEEE-1394 protocol analyzer meeting harsh flight line and in-field testing. Based on the 4th generation FireSpy analyzer architecture the FireSpy9432bT/9832bT but has been incorproated into an enclosure designed to meet MIL-STD-810 requirements. n fact combine nine FireSpy analyzers in one single instrument. They comprise a significantly more powerful on-board processor and improved connectivity to the host.

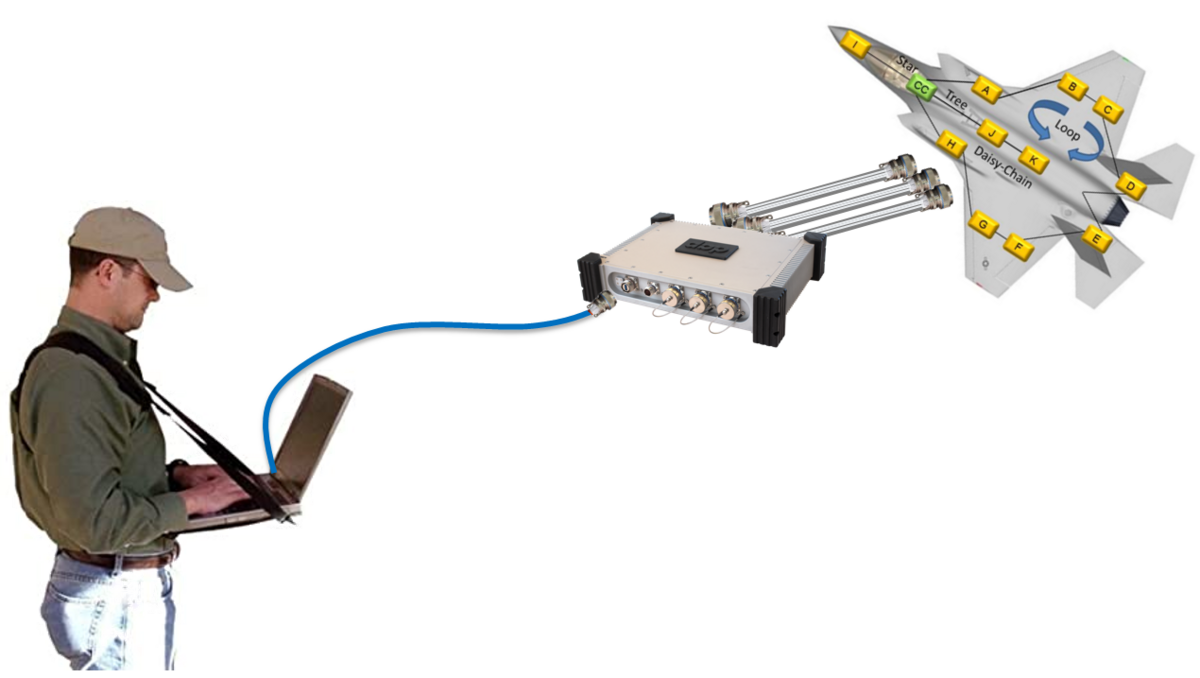

The seamless integration of the SAE AS5643 protocol together with its rugged design makes the FireSpy9433bTRGD/9833bTRGD the preferred tool for many Aerospace & Defense in-field monitoring tasks.

4th Generation Hardware

In order to support multi-bus analysis more efficiently this 1394 bus analyzer follows the design concept of the FireSpy 9432bT/9832bT.

The FireSpy 9432bTRGD/9832bTRGD have nine 1394 nodes connected to nine synchronized analyzer engines. They are controlled by three dual-core ARM processors running at 667MHz. Each node is connected to one 1394 port. The ports from 3 nodes are combined to one B-shell sized D38999 connector which was chosen over standard 1394 connectors for improved ruggedness.

The FireSpy 9432bTRGD/9832bTRGD are equipped with 15 GB internal memory and extensive hardware filtering and trigger possibilities. The analyzer can be connected to a host computer using the USB3.0 interface (D38999 connector). On the host you can control the FireSpy using a graphical user interface to analyze and display the bus traffic in a user-friendly way; or you can use the API to program your own control software.

Life Cycle Status

active
recommended for new designs
Initial Release/Shipping: OCT 2018

Key features

IEEE 1394-2008 Beta
Supported speeds depend on exact model:
- FireSpy9833bTRGD: one (1) Transformer-coupled Ports (per bus) : S400-S800 Beta
- FireSpy9433bTRGD: one (1) Transformer-coupled Ports (per bus) : S200-S400 Beta
- FireSpy9433bT1RGD: one (1) Transformer-coupled Ports (per bus) : S100-S200 Beta
Ruggedized enclsure designed to meet MIL-STD-810 requirements
Host connection via USB 3.0
Three on-board dual-core 667 MHz ARM processors and programmable logic
15 GByte internal memory
GUI and API for Windows^TM Operating Systems
9 analyzer engines with a total of 3x D38999 connectors (3x3 buses)
All ports are active transformer coupled
Powerful software provides:
- Monitor
- Recorder
- Commander
- Scriptor (programmable in C-like language)
- Generator
- Filter and Trigger
- Mil1394 Signal Monitor
- Mil1394 Player
Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
Internal SelfTest
C/C++ API with LabVIEW^TM Wrappers

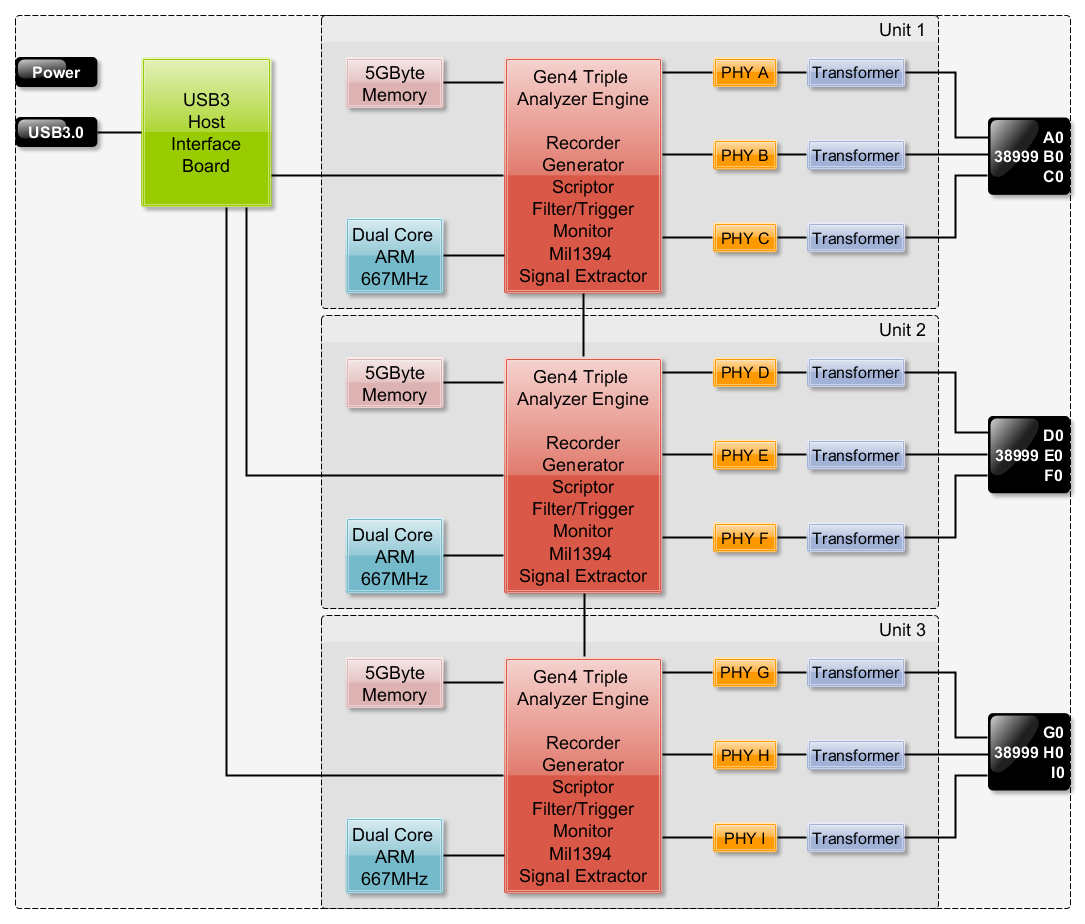

Block Diagram

FireSpy® 9433bTRGD/9833bTRGD specifications

Dimensions:	427mm x 320mm x 25mm
Weight:	8600 g
Power Requirements:	12V, 40 Watt maximum
Regulatory compliance:	FCC Class A , CE
Connections:	USB 3.0 connector for host-computer 3x D38999 conencots for 3 buses each
Indicators	Multicolor LEDs for: Unit status, Recorder, Scriptor, Generator, Active (per Node) Red LEDs for: USB, Power
Switches:	Push button for Power On/Off
Part Number:	FS9833BTRGD ( FS9833BTRGDAS5643 with AS5643 protocol ) FS9433BTRGD ( FS9433BTRGDAS5643 with AS5643 protocol )
Codes:	ECCN: 3A992.a HTS: 8471.90.0000
SW Add-on modules:	AS5643 protocol software pack SBP2 protocol software package IIDC protocol software package AV/C protocol software package IP1394 protocol software package

FireSpy® 9433bTRGD/9833bTRGD media files

Product Image(s)

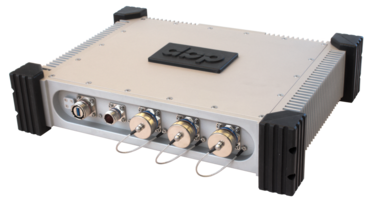

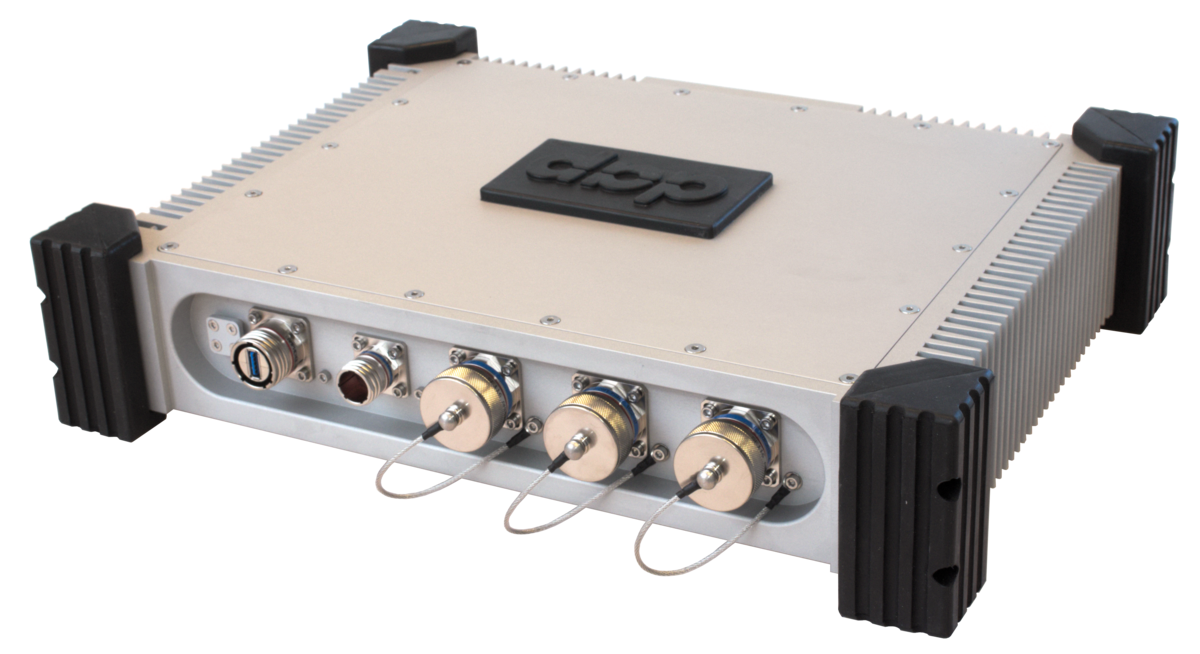

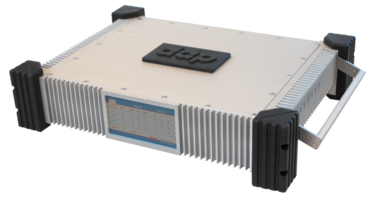

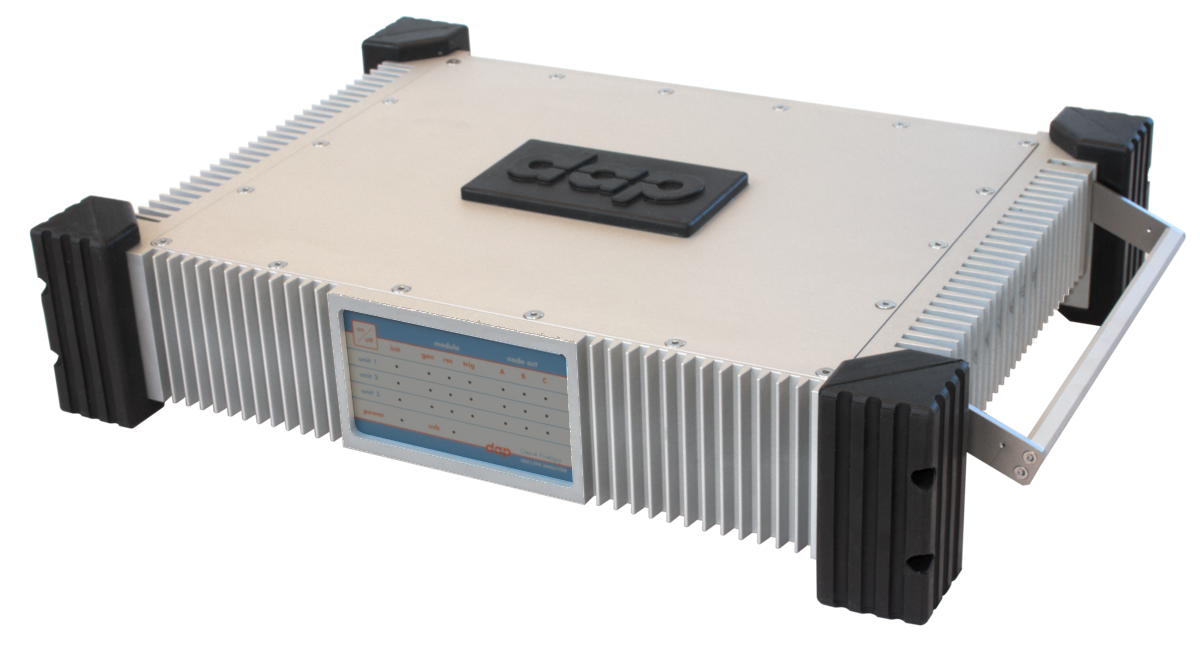

1394 and AS5643 Bus Analyzer - FireSpy9433bTRGD/9833bTRGD Product Photo — FireSpy9x33bTRGD (front view)

Architecture Drawing(s):

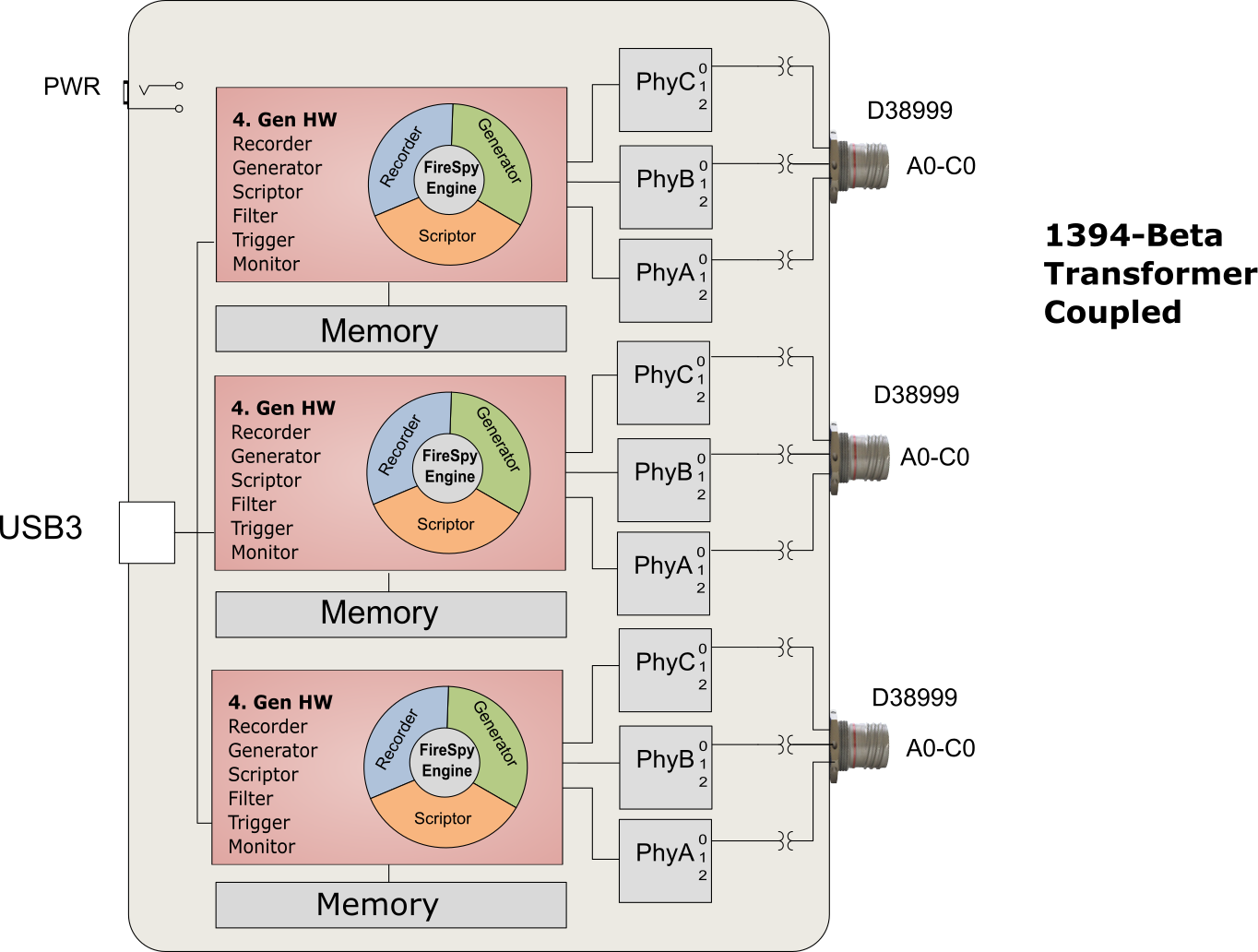

1394 and AS5643 Bus Analyzer - FireSpy9433bTRGD/9832bTRGD Architecture
