1394 and AS5643 Bus Analyzer - FireSpy3432bT/3832bT

FireSpy® 3432bT/3832bT

The FireSpy3832bT and FireSpy3432bT bus analyzers are DapTechnology's latest 3-bus IEEE-1394 protocol analyzer. Based on the 4th generation FireSpy analyzer architecture the FireSpy3432bT/3832bT is the most advanced 1394 test equipments in the market. The FireSpy3x32bT in fact combines three FireSpy analyzers in one single instrument. It comprises a significantly more powerful on-board processor and improved connectivity to the host.

The seamless integration of the SAE AS5643 protocol makes the FireSpy3432bT/3832bT the preferred tool for many Aerospace & Defense development tasks. DapTechnology has taken considerable efforts to fully support the AS5643 protocol in all major functional areas of the FireSpy3x32bT and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

4th Generation Hardware

In order to support multi-bus analysis more efficiently this new generation of 1394 bus analyzers has been completely re-architectured.

The FireSpy3432bT/3832bT has three 1394 nodes connected to three synchronized analysis engines. It is controlled by a dual core ARM processor running at 667MHz. Each node is connected to two 1394 ports. Two ports of each node are connected to LEMO connector.

The FireSpy3432bT/3832bT is equipped with 5 GB internal memory and extensive hardware filtering and trigger possibilities. The analyzer can be connected to a host computer using its USB3.0 interface. On the host you can control the FireSpy using a graphical user interface to analyze and display the bus traffic in a user-friendly way; or you can use the API to program your own control software.

Life Cycle Status

active
recommended for new designs
Initial Release/Shipping: Jul 2018

Key features

  • IEEE 1394-2008 Beta
  • Supported speeds depend on exact model:
    • FireSpy3832bT: two (2) Transformer-coupled Ports (per bus) : S400-S800 Beta
    • FireSpy3432bT: two (2) Transformer-coupled Ports (per bus) : S200-S400 Beta
    • FireSpy3432bT1: two (2) Transformer-coupled Ports (per bus) : S100-S200 Beta
  • Host connection via USB 3.0
  • On-board dual-core 667 MHz ARM processor and programmable logic
  • 5GByte internal memory
  • GUI and API for WindowsTM Operating Systems
  • 3 analyzing nodes with a total of 6 1394 ports
  • All ports are active transformer couple
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
    • Mil1394 Player
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with LabVIEWTM Wrappers

FireSpy® 3432bT/3832bT specifications

Dimensions: 125 mm x 48 mm x 301 mm
Weight: 1166g
Power Requirements: 12V, 40 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

USB 3.0 connector for host-computer

6x IEEE-1394 LEMO

Indicators





Multicolor LEDs for:
    Unit status, Recorder, Scriptor, Generator, Active (per Node)

Red LEDs for:
     USB, Power

Switches: Tumble switch for Power On/Off
Part Number:

FS3832BT (FS3832BTAS5643 with AS5643 SW protocol package)

FS3432BT ( FS3432BTS5643 with AS5643 SW protocol package)

FS3832 (FS3832AS5643 with AS5643 SW protocol package)

FS3432B ( FS3432BAS5643 with AS5643 SW protocol package)

Codes:

ECCN: 3A992.a

HTS: 8471.90.0000

SW Add-on modules:









AS5643 protocol software pack

SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

FireSpy® 3432bT/3832bT media files

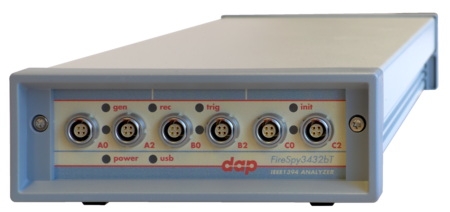

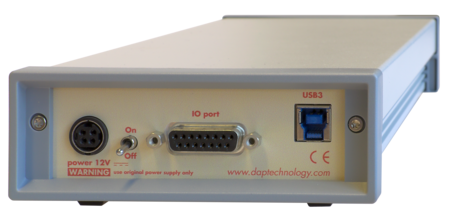

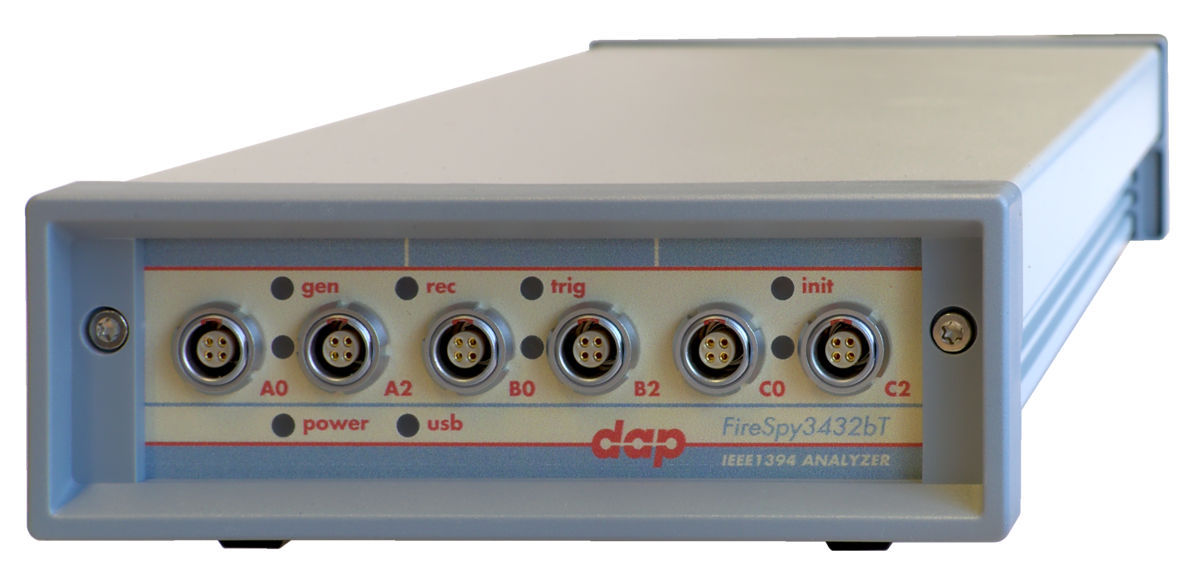

Product Image(s)

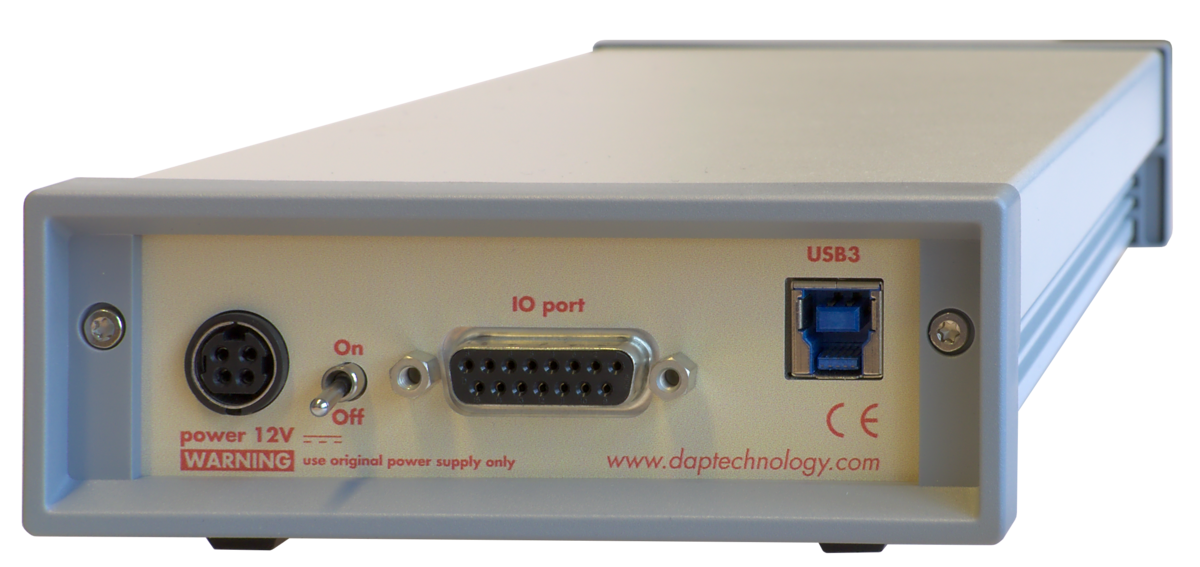

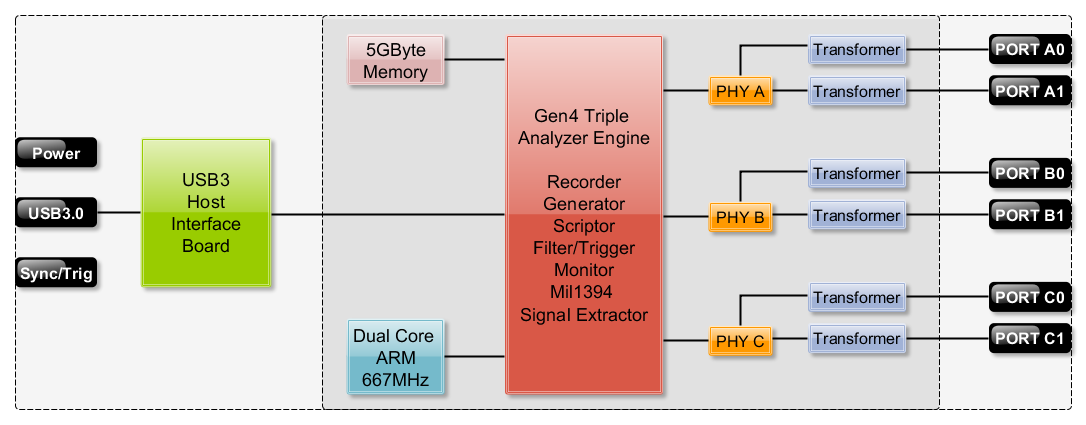

Architecture Drawing(s):

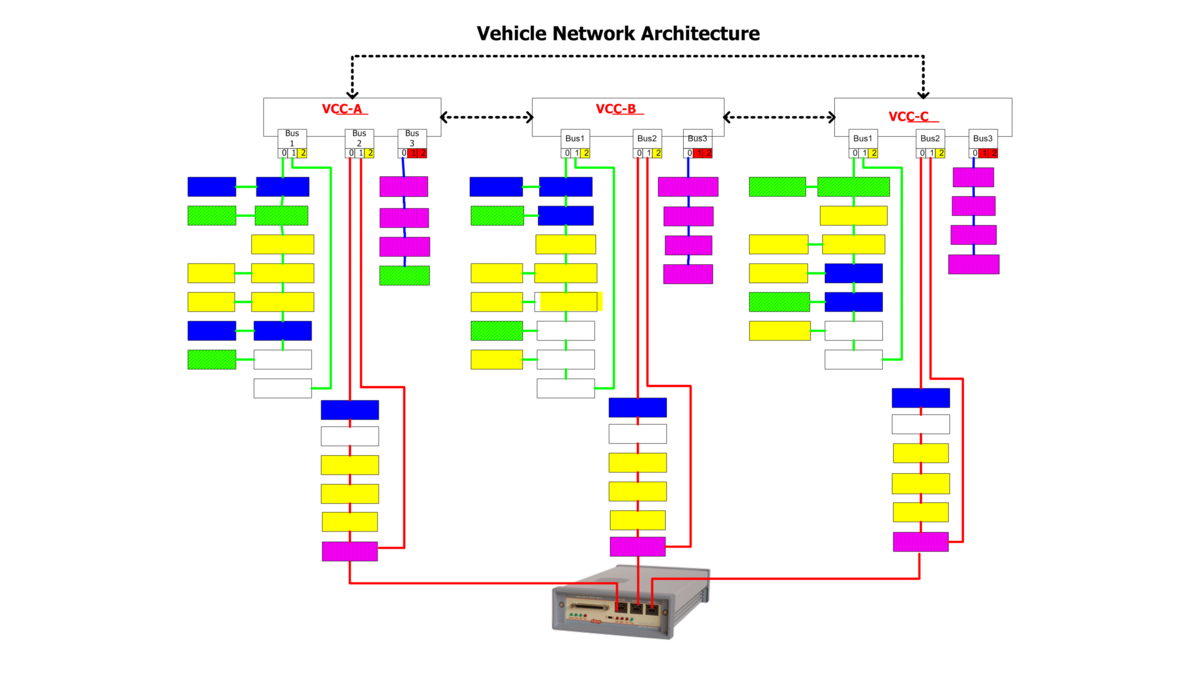

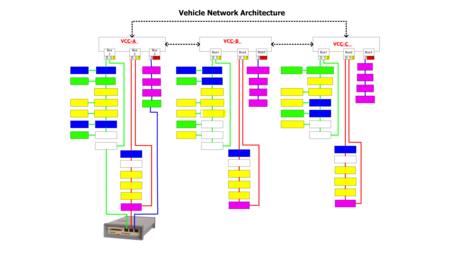

Connectivity Example(s):
