Accessories - PMC-Carrier PCIex4

PCIe x4 PMC Carrier

- 4-lane
- PMC compliant
- transparent PCIe carrier card

Home Products Accessories PMC Carrier PCIe x4

PMC Carrier PCIe x4

Looking for a way to plug your PMC mezzanine card into a computing platform with a 4-lane or more PCIe slot?

Well, the CC_PCIeG1x4_to_PMC is your answer! It is effective, field tested and compliant with all applicable standards.

Specification PCIe x4 Carrier Card

PCI Express Interface number of PCI Express lanes, max speed 4 / 2.5Gbps
form factor standard height, half length
compliance PCI Express Base 1.1
Bridge chip type Tundra Tsi384
compliance PCI Express PCI/PCI-X Bridge 1.0
  PCI-to-PCI Bridge Architecture 1.2
PMC Interface PCI width 32 or 64 bits
PCI speed 25, 33, 50 or 66 MHz
PCI-X width 32 or 64 bits
PCI-X speed 50, 66, 100 or 133 MHz
width selection automatic
speed selection semi-automatic (switch settings limit bus speed)
IO Voltage 3.3V
card detection green LED
compliance PCI Local Bus 3.0
  PCI-X 2.0 (mode 1 only)
  PCI Bus PMI 1.2
Power System to PMC 12V (25W), -12V (2W), 5V (25W), 3.3V (15W)
PMC card power 25W
consumption 15W
Device P/N

CC_PCIeG1x4_TO_PMC
Compliance CE, FCC, RoHS, REACH
Export Control: no license required (NLR)
HTS code: 8471.80.10.00

PMC Carrier PCIe x4 Media files

Product Image(s)

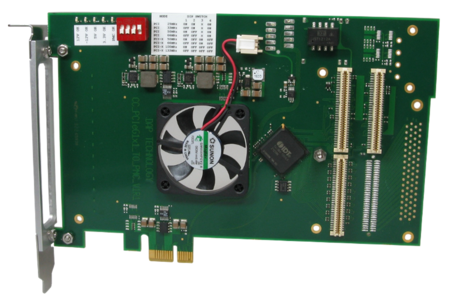

Accessories - PMC-Carrier PCIex4 Product Photo





PMC Carrier PCIe x4 Documentation

PMC Carrier PCIe x4 Sales info

Package Contents

Please contact DapTechnology or DapUSA directly by sending an email to sales(at)daptechnology.com for additional information about pricing and availability!
