FireSpy® 3430b(T)/3830(bT)

The FireSpy3430bT and FireSpy3830bT as well as FireSpy3430b and FireSpy3830 bus analyzers are DapTechnology's latest 3-bus IEEE-1394 protocol analyzer. Based on the 4th generation FireSpy analyzer architecture the FireSpy3430b(T)/3830(bT) is the most advanced 1394 test equipment in the market. The FireSpy3430b(T)/3830(bT) in fact combine three FireSpy analyzers in one single instrument. They comprises a significantly more powerful on-board processor and improved connectivity to the host.

The seamless integration of the SAE AS5643 protocol makes the FireSpy3430b(T)/3830(bT) the preferred tool for many Aerospace & Defense development tasks. DapTechnology has taken considerable efforts to fully support the AS5643 protocol in all major functional areas of the FireSpy3430b(T)/3830(bT) and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

4th Generation Hardware

In order to support multi-bus analysis more efficiently this new generation of 1394 bus analyzers has been completely re-architectured.

The FireSpy3430b(T)/3830(bT) has three 1394 nodes connected to three synchronized analysis engines. It is controlled by a dual core ARM processor running at 667MHz. Each node is connected to three 1394 ports. All ports of each node are connected to a 1394 bilingual connector in compliance with the 1394 standard.

The FireSpy3430b(T)/3830(bT) is equipped with 5 GB internal memory and extensive hardware filtering and trigger possibilities. The analyzer can be connected to a host computer using its USB3.0 interface. On the host you can control the FireSpy using a graphical user interface to analyze and display the bus traffic in a user-friendly way; or you can use the API to program your own control software.

Life Cycle Status

active
recommended for new designs
Initial Release/Shipping: Nov 2017

Key features

  • IEEE 1394-2008 Beta
  • Supported speeds depend on exact model:
    • FireSpy3830bT: three (3) Transformer-coupled Ports (per bus) : S400-S800 Beta
    • FireSpy3430bT: three (3) Transformer-coupled Ports (per bus) : S200-S400 Beta
    • FireSpy3430bT1: three (3) Transformer-coupled Ports (per bus) : S100-S200 Beta
  • Host connection via USB 3.0
  • On-board dual-core 667 MHz ARM processor and programmable logic
  • 5GByte internal memory
  • GUI and API for WindowsTM Operating Systems
  • 3 analyzing nodes with a total of 9 1394 ports
  • Optionally, all ports are active transformer coupled
  • Optionally, all ports can provide bus power
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
    • Mil1394 Player
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with LabVIEWTM Wrappers

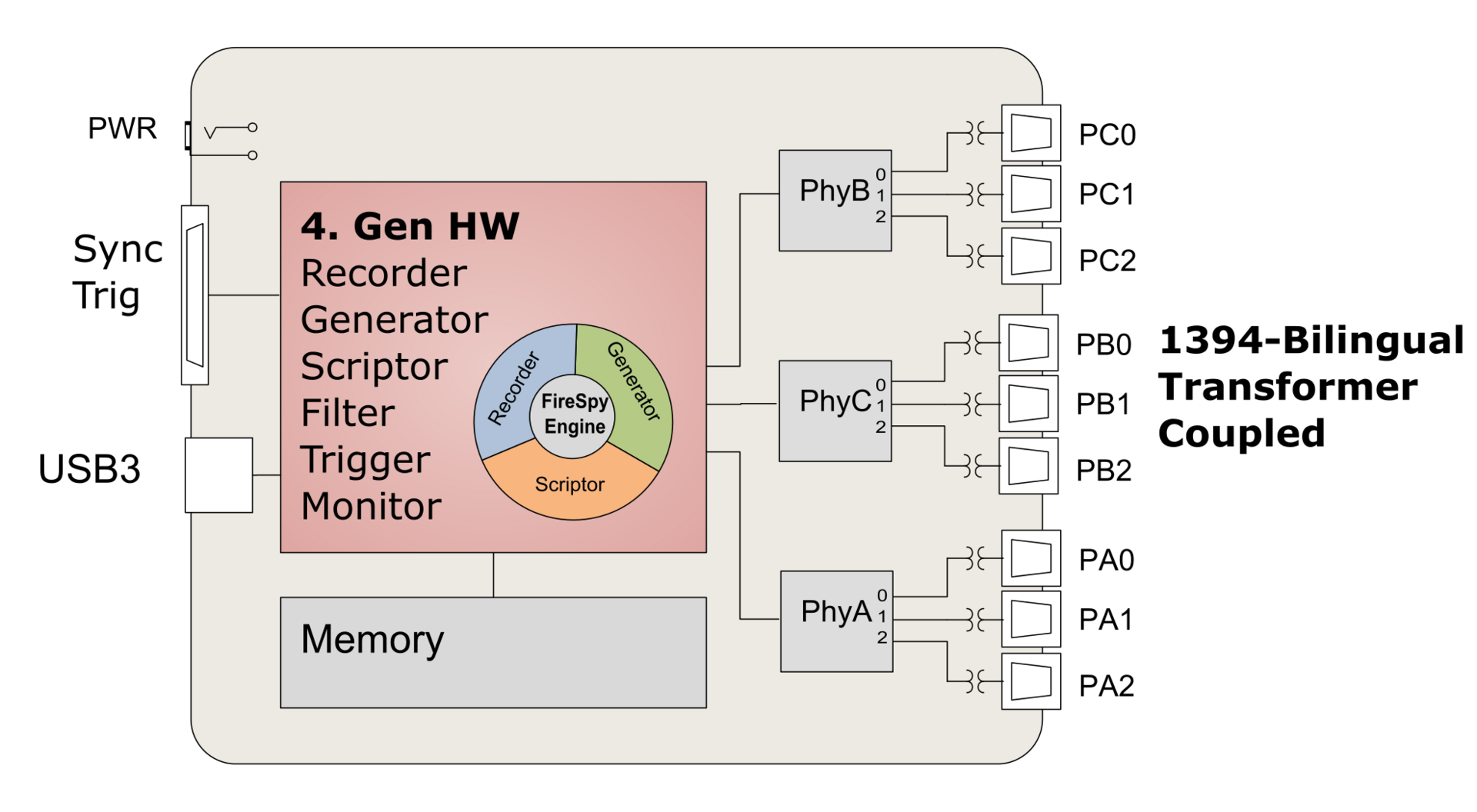

Block diagram

1394 and AS5643 Bus Analyzer - FireSpy3430bT/3830b(T) Block Diagram

FireSpy® 3430b(T)/3830(bT) specifications

Dimensions: 125 mm x 96 mm x 301 mm
Weight: 1790 g
Power Requirements: 12V, 40 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

USB 3.0 connector for host-computer

9x Bilingual connectors with screw holes for 1394 Bilingual and Beta connections

Indicators



Multicolor LEDs for:
    Unit status, Recorder, Scriptor, Generator, Active (per Node)

Red LEDs for:
     USB, Power
Switches: Tumble switch for Power On/Off
Part Number:

FS3830BT (FS3830BTAS5643 with AS5643 SW protocol package)

FS3430BT (FS3430BTS5643 with AS5643 SW protocol package)

FS3830 (FS3830AS5643 with AS5643 SW protocol package)

FS3430B (FS3430BAS5643 with AS5643 SW protocol package)
Codes:

Export Control: EAR99

HTS: 9031.80.80.85

SW Add-on modules:









AS5643 protocol software pack

SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

FireSpy® 3430b(T)/3830(bT) media files

Product Image(s)

1394 and AS5643 Bus Analyzer - FireSpy3430bT/3830b(T) Product Photo

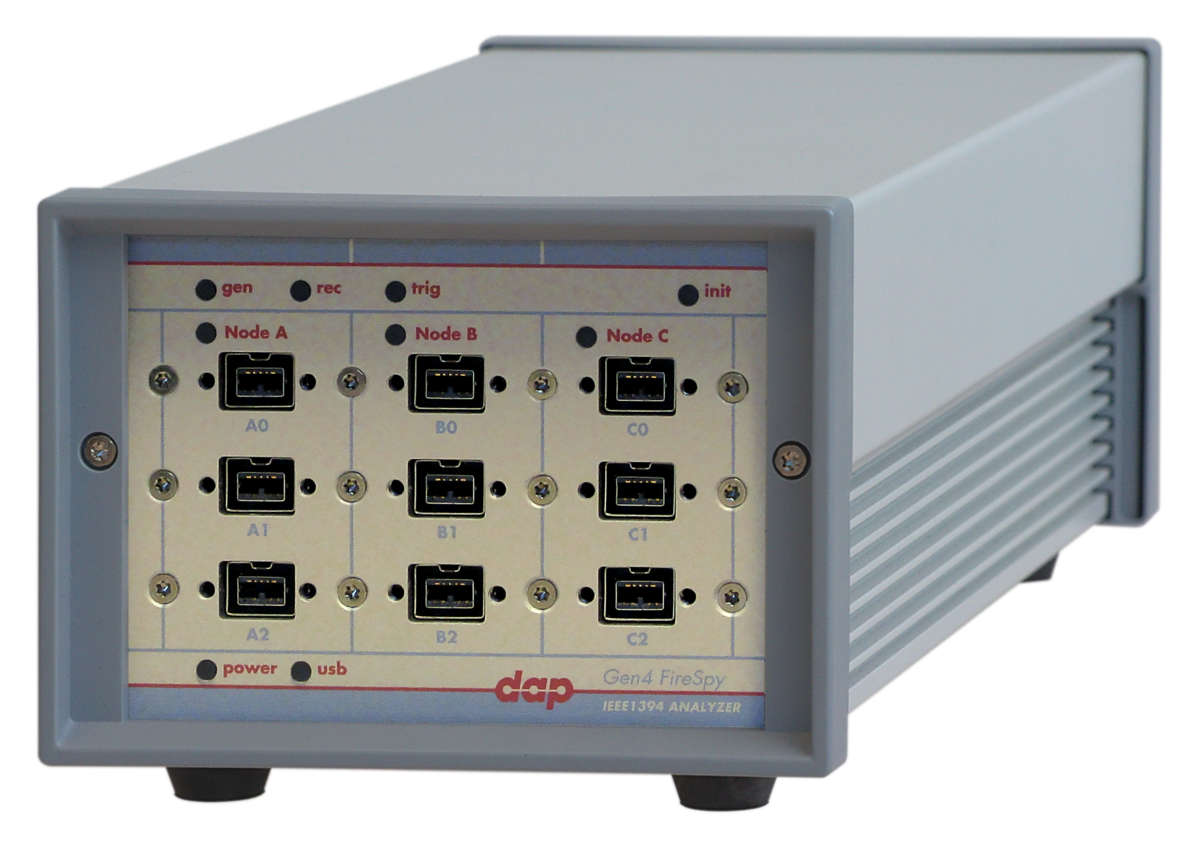

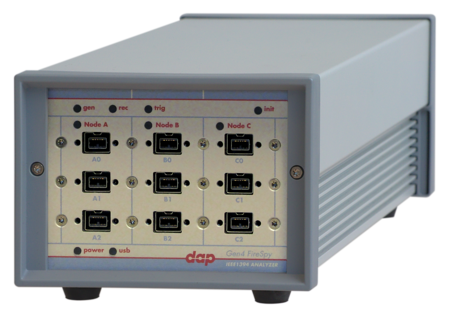

FireSpy3x30xx (front view)
1394 and AS5643 Bus Analyzer - FireSpy3430bT/3830b(T) Product Photo

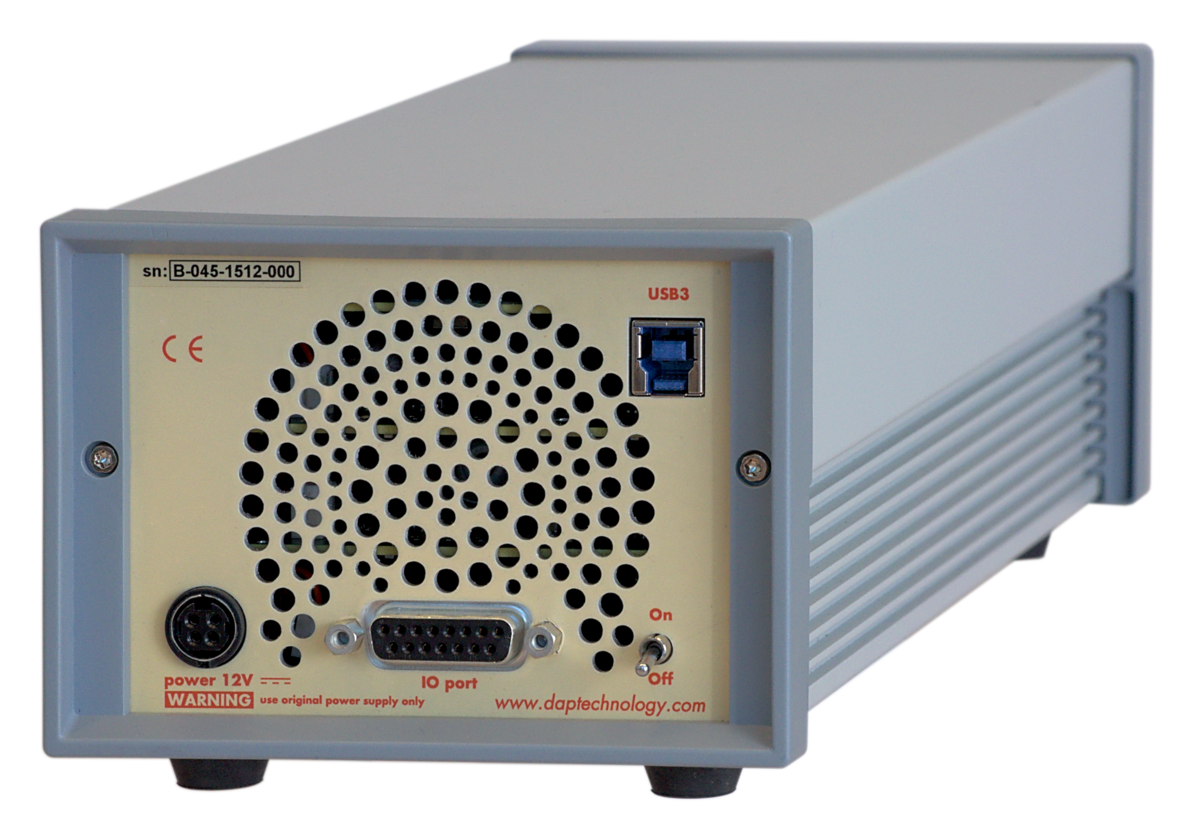

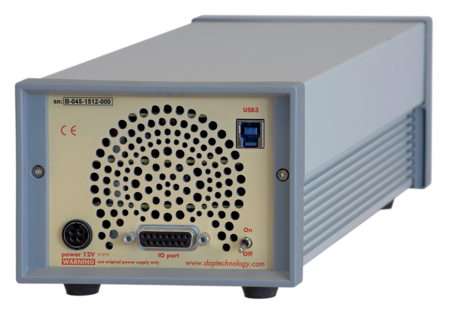

FireSpy3x30xx (rear view)

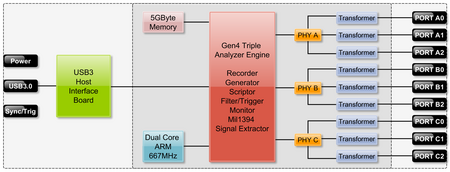

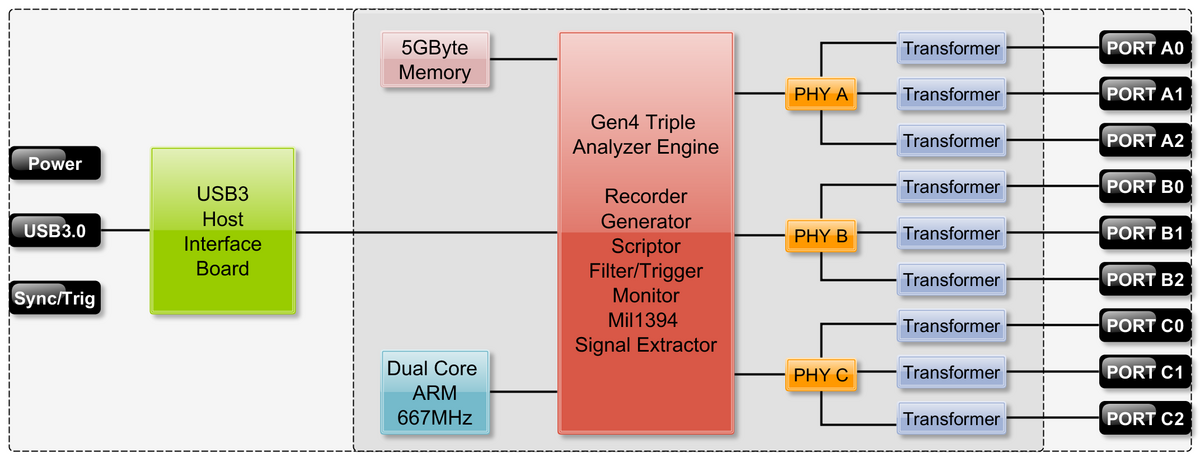

Architecture Drawing(s):

1394 and AS5643 Bus Analyzer - FireSpy3430bT/3830b(T) Architecture

Connectivity Example(s):

1394 and AS5643 Bus Analyzer - FireSpy Triple Connectivity
connectivity option: connected to three buses per VCC (vehicle management computer) in a 3x3 network configuration (3 VCCs, triple redundancy)
1394 and AS5643 Bus Analyzer - FireSpy Triple Connectivity
connectivity option: connected to one bus per VCC (vehicle management computer) in a 3x3 network configuration (3 VCCs, triple redundancy)

FireSpy® 3430b(T)/3830(bT) sales info

Package Contents

  • FireSpy3430b(T)/3830(bT)
  • Switching AC/DC Power Supply
  • USB Cable
  • 3x Beta cables (CAFW99S), additional cables can be purchased separately

Delivery time

Typically 4 weeks. Please contact sales(at)daptechnology.com for more detailed information.

Warranty

Standard: 48 months, limited.
Options: Additional 1-year SW/FW Support packages may be purchased.

Support

All products will be supported on a 24 hours response basis and free of charge during the warranty period. For support questions please contact: sales(at)daptechnology.com
Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

Educational purposes

For those educational institutions that would like to use our high-specification IEEE-1394 analyzer for educational purposes only, we have a special discount offer. Our FireSpy® software which runs automatically in demo-mode without the use of a FireSpy® has great educational properties. This software can be used for free by everyone and is of great value for learning IEEE-1394. In order to obtain more details about this offer, please contact: sales(at)daptechnology.com

Price Info / Quote Request

Please contact sales(at)daptechnology.com for current pricing.
