FireSpy® 410b(T)/810

The FireSpy410b and FireSpy410bT and FireSpy810 bus analyzers are the flagship in the second generation of IEEE-1394 analyzers from DapTechnology. Based on the industry leading FireSpy800 the all new and enhanced architecture of the FireSpyx10(bT) have raised the bar in IEEE-1394 test equipment! They comprise a significantly more powerful on-board processor, more memory and improved connectivity to the host.

The FireSpyx10(bT) are small, compact instrument that are equipped with 1024 MB internal memory. The units offer extensive hardware filtering and trigger possibilities due to efficient programmable logic and an on-board processor. They support up to 800Mb transfer rate and is fully IEEE-1394b compliant. Two bilingual 1394b ports allow for convenient connection to the system under test.

The FireSpyx10(bT) may be connected to a host computer via the USB2.0 interface. Furthermore, an Ethernet port allows for easy network integration and remote control. The graphical user interface runs on WindowsTM  Operating Systems. It is intuitive and offers a user-friendly way of data presentation and user control. Additionally, the included API even allows you to build your own controlling software or interface using C/C++ or LabVIEWTM.

The seamless integration of the SAE AS5643 protocol makes the FireSpyx10(bT) the preferred tool for many Aerospace & Defense development tasks. DapTechnology has taken considerable efforts to fully support the SAE AS5643 protocol in all major functional areas of the FireSpyx10(bT) and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

Life Cycle Status

End of Sales     Aug 2020
not recommended for new designs
replaced by: FireSpy430b(T)/430(bT)

Key features

  • IEEE 1394-1995, 1394a-2000 and 1394b-2002 compliant
  • Supported the following speeds: two (2) Ports: S100-S400 Legacy and S400-S800 Beta
  • Host connection to PC via USB 2.0 or 10/100BaseT LAN
  • On-board 400 MHz RISC processor and programmable logic
  • 1024 MByte internal memory
  • GUI and API for WindowsTM Operating Systems
  • 2 bilingual 1394 ports
  • Bus Power Provider (3W at 12V) *
  • Enhanced Scriptor functionality for real-time monitoring and asynchronous packet generation
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with wrappers for LabVIEWTM

Block Diagram

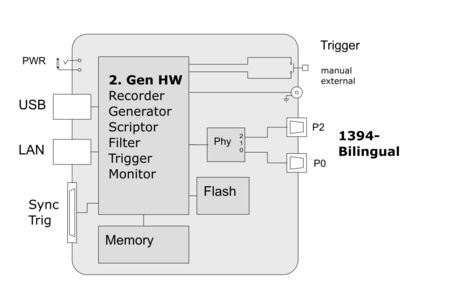

FireSpy410 and FireSpy810 (Bilingual)

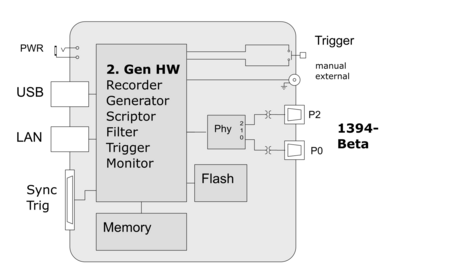

FireSpy410bT (Transformer and Beta)

FireSpy® 410b(T)/810 specifications

Dimensions: 125 mm x 48 mm x 224 mm
Weight: 760 g
Power Requirements: 12V, 10 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

USB2.0-connector for host-computer

RJ45 Ethernet connector

2 IEEE-1394 connectors (bilingual or Beta)

BNC-connector for external trigger-input signal

Indicators







Green LEDs for:
    USB-connection, Power on, Ethernet, Ready, Trigger

Red LEDs for:
     Record, Active, Generate

Buzzer
Switches:

Tumble switch for Power On/Off

Push button for manual triggering
Part Number:

FS081 (FS081AS5643 with AS5643 protocol)

FS041 (FS041AS5643 with AS5643 protocol)

FS041bT (FS041bTAS5643 with AS5643 protocol)
Codes:

ECCN:3A992.a

HTS: 8471.90.0000


SW Add-on modules:









AS5643 protocol software pack

SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

FireSpy® 410b(T)/810 media files

Product Image(s)

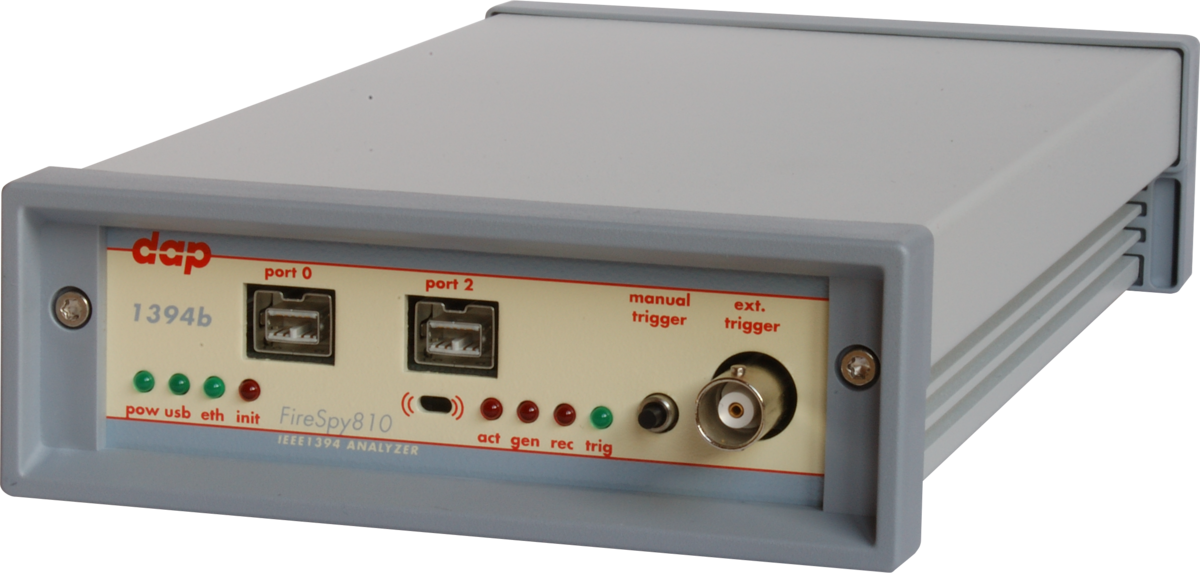

FireSpyx10xx (front view)
FireSpy810/410b(T) (front view)

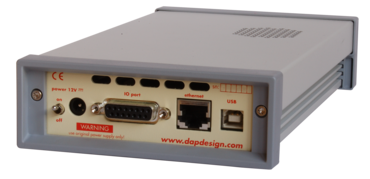

FireSpyx10xx (rear view)

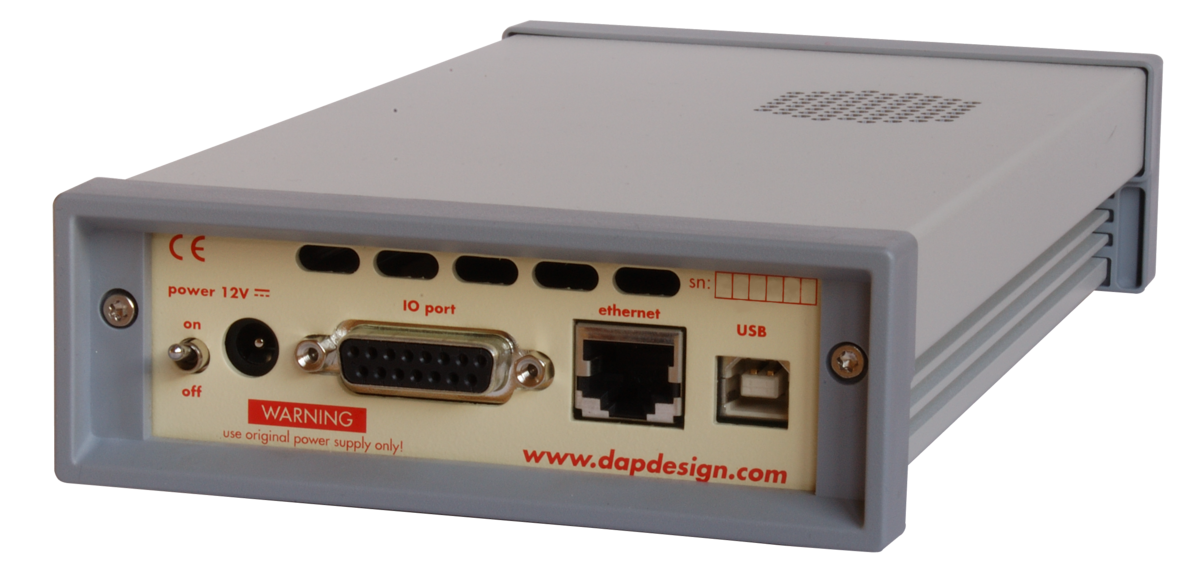

FireSpy810/410b(T) (rear view)

Connectivity Example(s):

connectivity option: connected to one of the multiple buses in a AS5643 compliant VS control system
