FireSpy® 410

The FireSpy410 bus analyzer is another product in the Advanced Series of FireWire analyzers from DapTechnology. Based on the FireSpy400/800 concept the all new and enhanced architecture of the FireSpy410 redefines IEEE 1394 test equipment. It comprises a significantly more powerful on-board processor, more memory and improved connectivity to the host.

The FireSpy410 is a small, compact instrument that is equipped with 1024 MB internal memory. The unit offers extensive hardware filtering and trigger possibilities due to efficient programmable logic and an on-board processor. It supports up to 400Mb transfer rate and is fully IEEE 1394-2000 compliant. Two standard 1394 ports allow for convenient connection to the system under test.

The FireSpy410 may be connected to a host computer via the USB 2.0 interface. Furthermore, an Ethernet port allows for easy network integration and remote control. The graphical user interface runs on WindowsTM  Operating Systems. It is intuitive and offers a user-friendly way of data presentation and user control. Additionally, the included API even allows you to build your own controlling software or interface using C/C++ or LabVIEWTM.

Life Cycle Status

End of Sales     Aug 2020
not recommended for new designs
replaced by TBA

Key features

  • IEEE 1394-1995 and 1394a-2000 compliant
  • Supports the following speeds: two (2) Ports: S100-S400 Legacy
  • Host connection to PC via USB 2.0 or 10/100BaseT LAN
  • On-board 400 MHz RISC processor and programmable logic
  • 1024MByte internal memory
  • GUI and API for WindowsTM Operating Systems
  • 2 FireWire ports (6-pin)
  • Bus Power Provider (3W at 12V)
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Generator
    • Filter and Trigger
    • Scriptor
  • Support for AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with Wrappers for LabVIEWTM

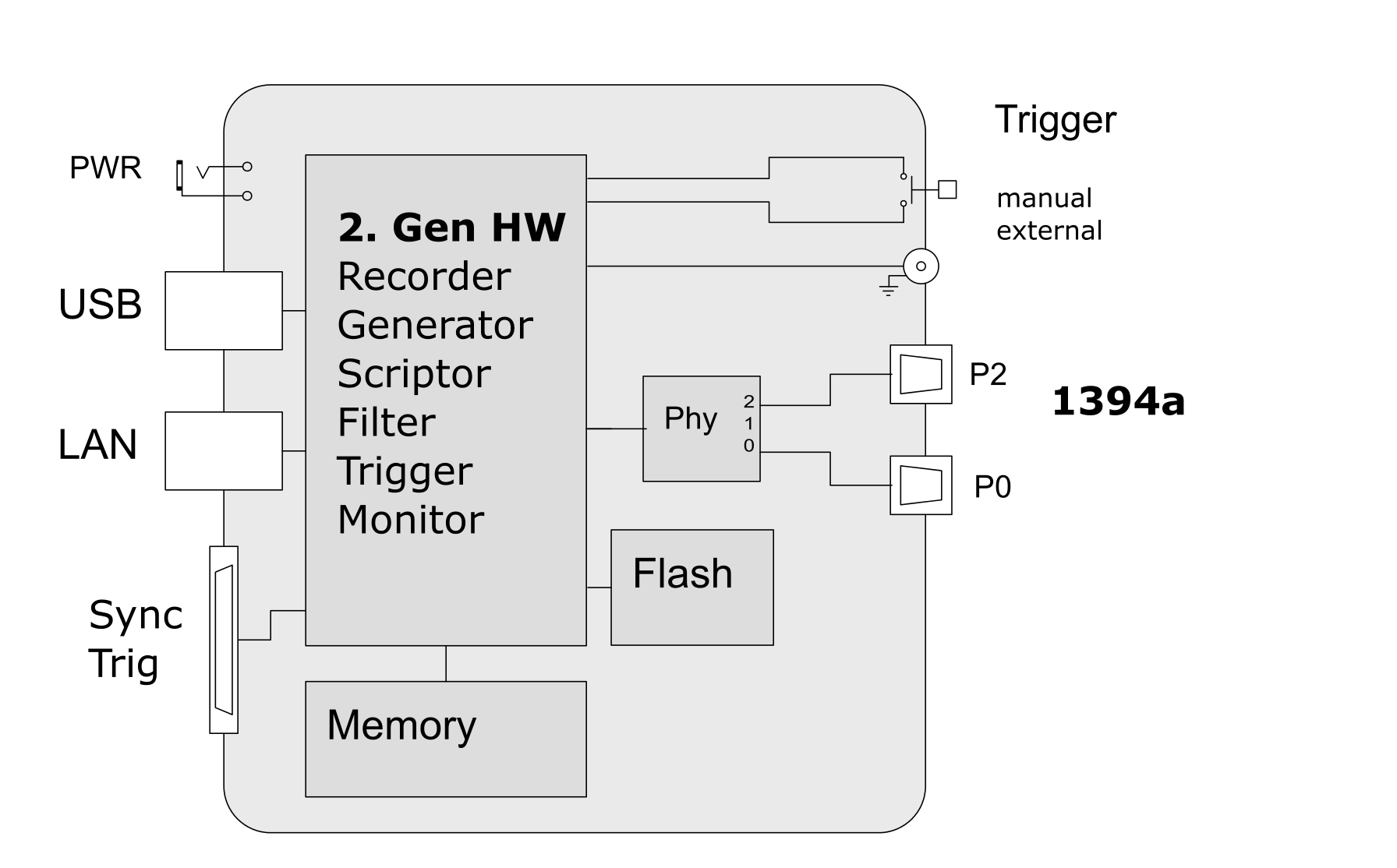

Block Diagram

FireSpy® 410 specifications

Dimensions: 125 mm x 48 mm x 224 mm
Weight: 760 g
Power Requirements: 12V, 10 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

USB2.0-connector for host-computer

RJ45 Ethernet connector

2 IEEE1394 connectors (6-pin)

BNC-connector for external trigger-input signal

Indicators





Green LEDs for
:    USB connection, Power on, Ethernet, Ready, Trigger

Red LEDs for:
     Record, Active, Generate
Switches:

Tumble switch for Power On/Off

Push button for manual triggering
Part Number: FS041

SW Add-on modules:







SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

FireSpy® 410 media files

Product Image(s)

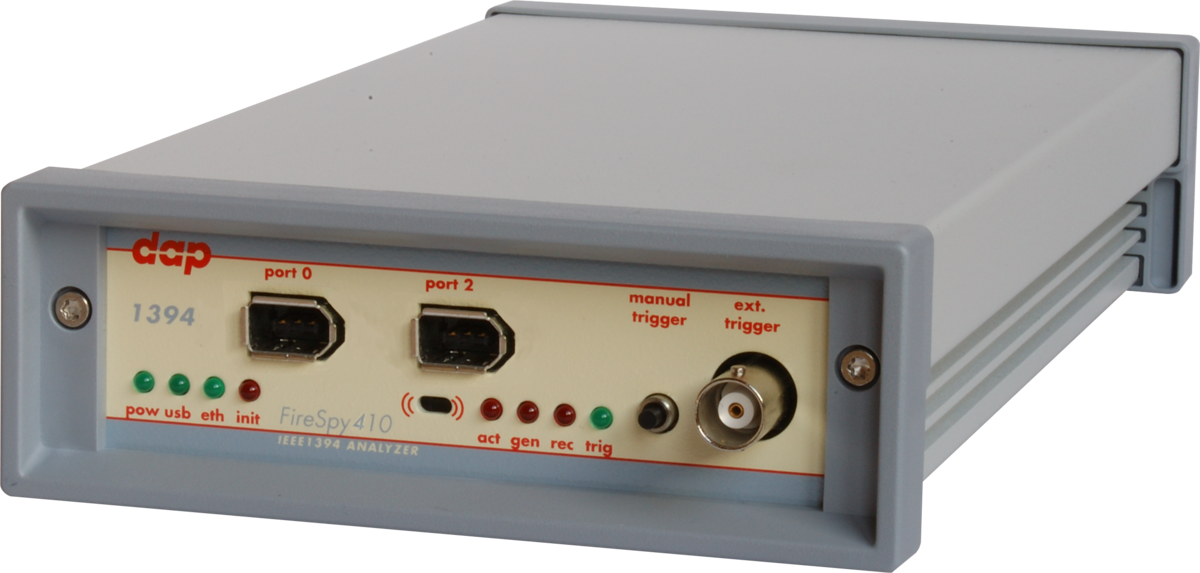

FireSpy410 (front view)
FireSpy410 (front view)

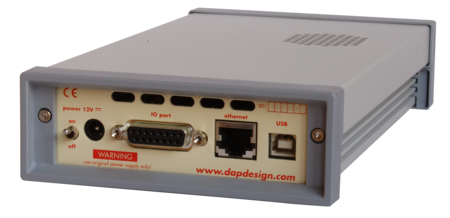

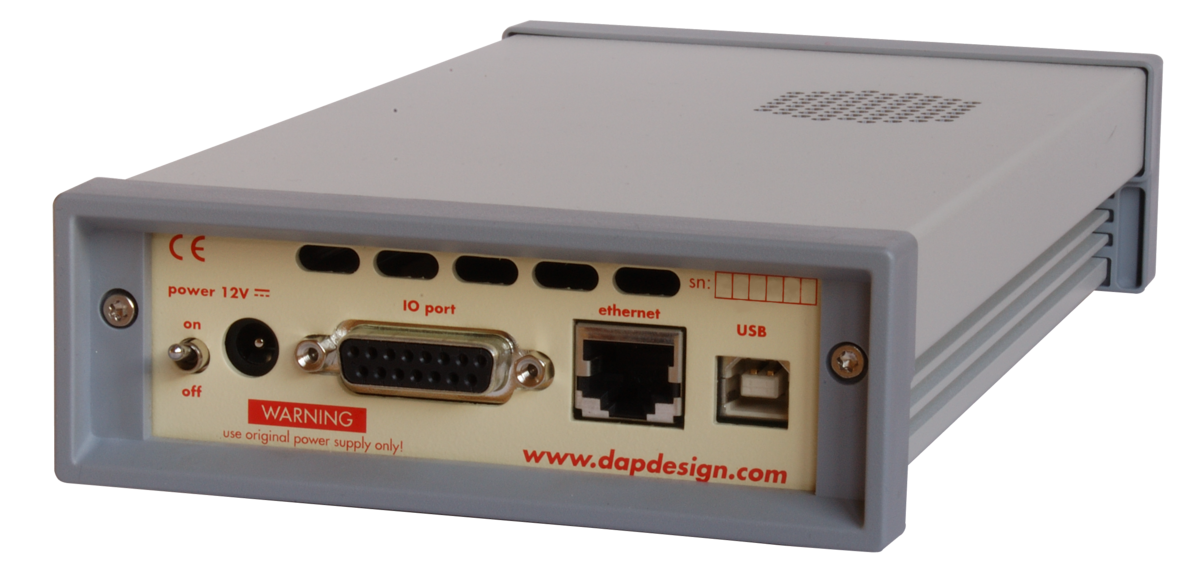

FireSpy410 (rear view)
FireSpy410 (rear view)

FireSpy® 410 sales info

Package Contents

  • FireSpy410
  • Switching AC/DC Power Supply
  • USB Cable
  • 1394 Cable
  • Trigger Cable

Delivery time

Lead time is based on special project terms. Please contact sales(at)daptechnology.com for more detailed information.

Warranty

Standard: 36 months, limited.

Support

All products will be supported on a 24 hours response basis and free of charge for the first 24 months. For support questions please contact: sales(at)daptechnology.com

Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

Price Info / Quote Request

Please contact sales(at)daptechnology.com for current pricing.

Country Distributor Phone URL
China BEIJING CESITEK CO., LTD. +86 10 84177715 www.cesitek.com
Japan Nacelle Co. Ltd. +81-3-5921-5099 www.nacelle.co.jp
United States of America DapUSA, Inc +1 480 422 1551 www.dapusa.com
South Korea Realtimewave Co. Ltd. +82-31-698-2980/2 www.realtimewave.com
all other countries Dap Technology B.V. +1-514-453-4111 www.daptechnology.com

Click here for a more detailed listing of our Sales Representations.
