    FireStealth® FS810bN

    DapTechnology’s FireStealth810bN with its non-intrusive bus monitoring technology is the world’s first “Stealth Mode” IEEE-1394b analyzer. The FireStealth IEEE-1394b analyzer is a bus monitoring device that is attached to the IEEE-1394b bus leaving the existing topology unaffected. The device does not participate in the bus configuration and thus, no topology reconfiguration and node ID reassignments occur. The FireStealth’s passive personality and non-intrusive behavior renders it invisible to all other devices on the IEEE-1394b bus. Also, it does not participate in any bus management activities such as root contention, cycle start generation & transmission arbitration.

    The FireStealth is a small, compact instrument that is equipped with 1024MB internal memory. The unit offers extensive hardware filtering and trigger possibilities due to efficient programmable logic and an on-board processor. It supports up to 800Mb transfer rates. Two bilingual 1394b connectors allow for convenient connection to the system under test.

    The FireStealth may be connected to a host computer via the USB2.0 interface. Furthermore, an Ethernet port allows for easy network integration and remote control. The graphical user interface runs on WindowsTM Operating Systems. It is intuitive and offers a user-friendly way of data presentation and user control. Additionally the included API even allows you to build your own control software using C/C++ or LabVIEWTM.

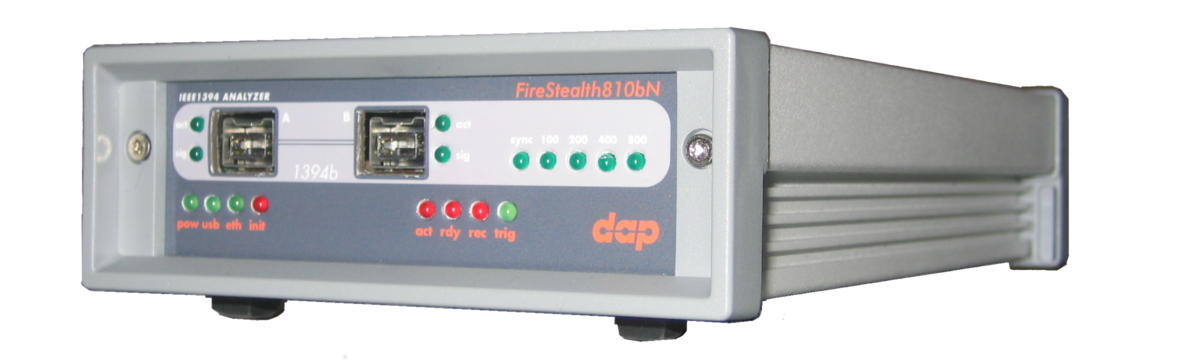

    The FireStealth® uses an internal hardware architecture derived from the FireSpy® product line and therefore offers very similar functionality as well as user interfaces. Only the bus interface section is different and was replaced with a powerful data pickup logic. (click on picture to enlarge)

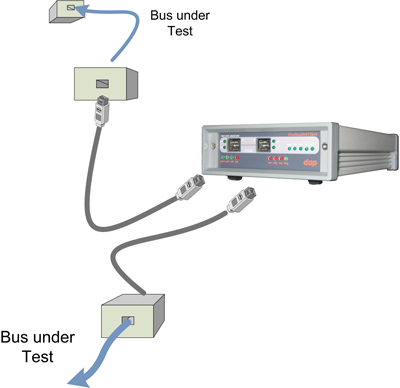

    The FireStealth® requires a pass-through wiring. It needs to be connected between other devices on the bus and cannot be in a leaf node postion. (click on picture to enlarge)

    Click here to read about the benefits of Non-intrusive Bus Analysis.

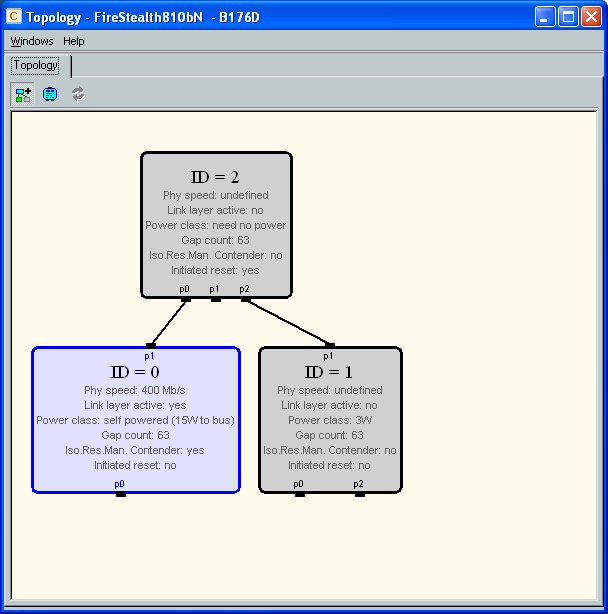

    Screenshot of Firestealth® topology display. Note that the FireStealth® is not part of the bus although physicall connected between nodeID= x and nodeID=2. (click on picture to enlarge)



    Key features

    • Supports IEEE1394 Beta
    • Supports the floowing speeds:one (1) pass-through Port: S100-S800 Beta,Symbol Recorder mode: S100-S400
    • Host connection to PC via USB 2.0 or 10/100BaseT LAN
    • On-board 400 MHz RISC processor and programmable logic
    • 1024 MByte internal memory
    • GUI and API for WindowsTM Operating Systems
    • 2 Beta FireWire ports
    • Enhanced Scriptor functionality for real-time monitoring
    • Powerful software provides:
      • Monitor
      • Recorder
      • Topology
      • Scriptor (programmable in C-like language)
      • Filter and Trigger
      • Mil1394 Signal Monitor
      • Lowel-Level 1394 Symbol Recorder (up to S400)
    • Support for AS5643 (Mil1394), AV/C, SBP2, IP1394 and IIDC protocols
    • Internal SelfTest
    • C/C++ API with LabVIEWTM Wrappers

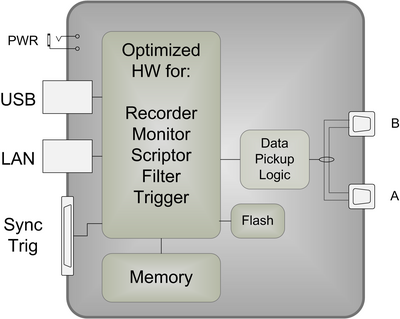

    Block Diagram

  • Specification

    FireStealth® 810bN specifications

    Dimensions: 125 mm x 48 mm x 224 mm
    Weight: 770 g
    Power Requirements: 12V, 10 Watt maximum
    Regulatory compliance: FCC Class A , CE
    Connections:

    USB2.0-connector for host-computer

    RJ45 Ethernet connector

    2 IEEE1394 connectors (Beta)

    Indicators







    Green LEDs for:

        USB-connection, Power on, Ethernet, Ready,
        Trigger, Signal, Sync, Speed

    Red LEDs for:

         Record, Active, Ready

    BiColor LEDs for:

         Port Polarity, Port Signal

    Buzzer

    Switches: Tumble switch for Power On/Off
    Part Number: FS081bN (FS081bNAS5643 with AS5643 protocol

    SW Add-on modules:









    AS5643 protocol software pack

    SBP2 protocol software package

    IIDC protocol software package

    AV/C protocol software package

    IP1394 protocol software package

  • Media

    FireStealth® 810bN media files

    Product Image(s)

  • Documents
  • Sales

    FireStealth® 810bN sales info

    Package Contents

    • FireStealth810bN
    • Switching AC/DC Power Supply
    • USB Cable
    • 2x 1394b Cable (Beta9 - Beta9, 1 meter with ferrites)

    Delivery time

      Typically 2 weeks. Please contact sales(at)daptechnology.com for more detailed information.

      Warranty

        Standard: 24 months, limited.

        Options: Additional 1-year Support packages may be purchased.

        Support

          All products will be supported on a 24 hours response basis and free of charge for the first 24 months. For support questions please contact: sales(at)daptechnology.com

          Of course you can also call us during our office hours from 9:00 until 17:00 hours (GMT +1:00). Contact Info

          Upgrades

            Software updates are available for download during the support period of your FireSpy. Please enter the serial number on the Software Download page to see what is the latest version available.

            Once you have owned a FireSpy® for a long time at some point you may want to upgrade it to a later model. Should you want to know more about upgrade pricing and compatibility, please contact info(at)daptechnology.com.

            Educational purposes

            For those educational institutions that would like to use our high-specification IEEE-1394 analyzer for educational purposes only, we have a special discount offer. Our FireSpy® software which runs automatically in demo-mode without the use of a FireSpy® has great educational properties. This software can be used for free by everyone and is of great value for learning IEEE-1394. In order to obtain more details about this offer, please contact: sales(at)daptechnology.com

            Price Info / Quote Request

              Please contact sales(at)daptechnology.com for current pricing.
