For Product(s): ....
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

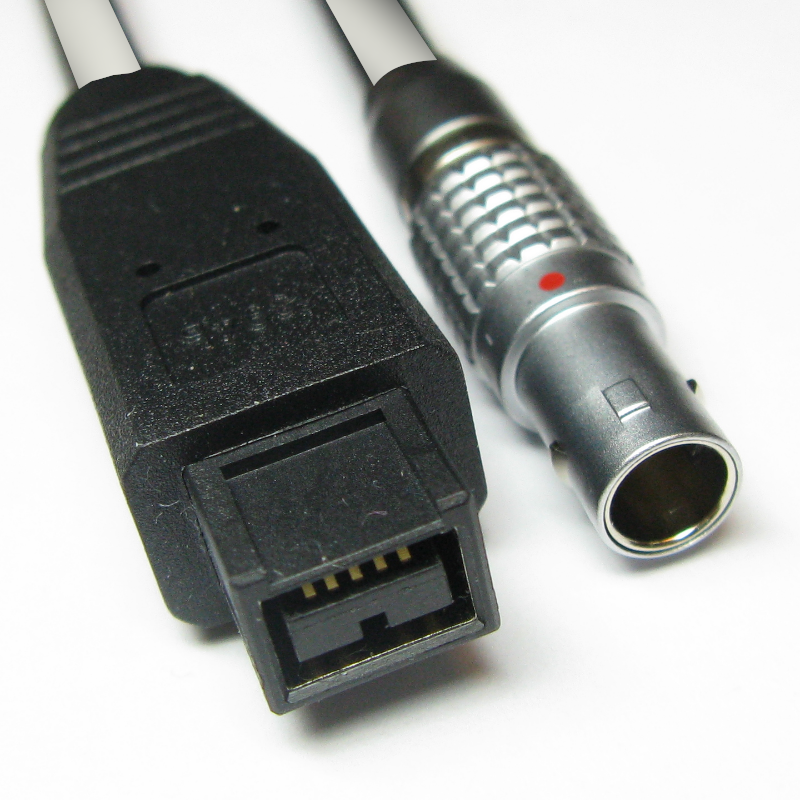

BEMnF1LEM-Qxx

1394b, Beta (male)
9-pin

LEMO male (EGG.0B.304)

n feet

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft, 50ft variants, customs lengths as well as in different wire gauges (26/24/22 AWG) according to the SAE cable guide.
Please talk to our sales specialists for such variants.

For Product(s): ...
Documents: -
Cable Type: GoreQuadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

BEMnF1BLF-Qxx


BEMnF1LEF-Qxx

1394b, Beta (male)
9-pin

as above

1394b, Beta (female)
9-pin

LEMO female (PHG.0B.304)

n feet


n feet

For Product(s): FireSpy, ....
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

BEMnF1MAS-mm-Q26
BEMnF1MAP-mm-Q26

BEMnF1MAS-mm-S-Q26
BEMnF1MAP-mm-S-Q26

1394b, Beta (male)
9-pin

as above

D38999, Shell A, socket
D38999, Shell A, pin

as above

n feet


n feet

RX/TX
Crossover

no RX/TX
Crossover (straight)

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapater
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

PMC3CHnFNT-Q26


PMC3CHnFNT-IS-Q26

1x SCSCI2 connector,
68-pin

as above

9x unterminated cable


9x unterminated cable
1x IRIG and 3x SYNC

n feet


n feet

Above harnesses are available in 3ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
The harnesses above can also be built with termination connectors (sockets and/or plugs) of the following type(s): 38999, LEMO.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapter
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS 8544.49.100

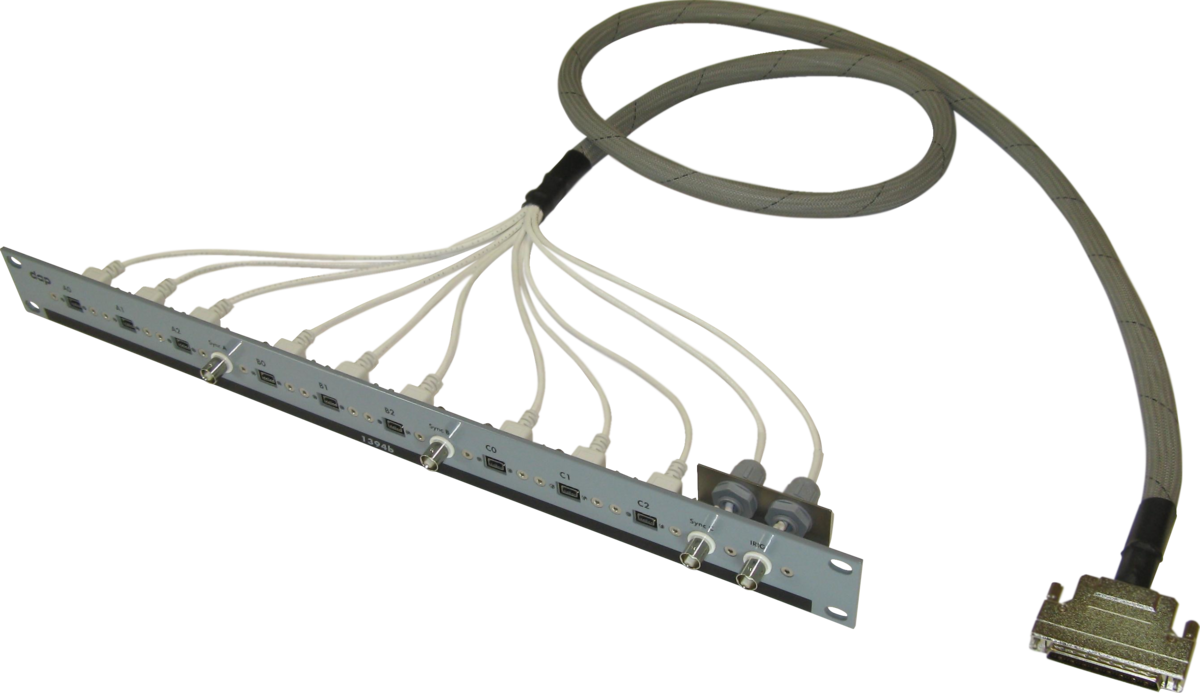

PMC3CHnF19PBLF-Q26


PMC3CHnF19PBLF-IS-Q26

1x SCSCI2 connector,
68-pin

as above

x 1394 Bilingual (female),
9-pin

9x 1394 Bilingual (female),
9-pin
1x IRIG and 3xSYNC

n feet


n feet

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4SFF-Q26
SFFnF3SFF-Q26

SFF-8614

SFF-8614

n feet

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4NT-Q26
SFFnF3NT-Q26

SFF-8614

4x unterminated cable
3x unterminated cable

n feet

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4LEM-Q26
SFFnF3LEM-Q26

SFFnF4LEF-Q26
SFFnF3LEF-Q26

SFF-8614


SFF-8614

4x LEMO male
3x LEMO male

4x LEMO female
3x LEMO female

n feet


n feet

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4BLF-Q26
SFFnF3BLF-Q26

SFF-8614

4x 1394b Bilingual female
3x 1394b Bilingual female

n feet

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4BEM
SFFnF3BEM

SFF-8614

4x 1394b Beta male
3x 1394b Beta male

n feet

Above harnessesare available in lengths up to 10ft.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: standard 1394
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4L6M
SFFnF3L6M

SFF-8614

4x 1394a 6pin male
3x 1394a 6pin male

n feet

Above harnessesare available in lengths up to 10ft.
Additional to the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF4MAS-mm-Q26
SFFnF3MAS-mm-Q26

SFFnF4MAP-mm-Q26
SFFnF3MAP-mm-Q26

SFF-8614


as above

4x 38999*, size A, socket
3x 38999*, size A, socket

4x 38999*, size A, pin
3x 38999*, size A, pin

n feet


n feet

* Due to numerous options for 38999 connectors (material, size, pinning, keying, lanyard, ...) a detailed connector requirement has to be delveloped as part of the sales process.

Above harnesses are available in 1ft, 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
Besides the default configuration (i.e. 3/4 bus connections) the harnesses above can also be built with a lower number (1/2) of connections per SFF connector. Please talk to our sales specialists for such variants.
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF419PBLF-IS-Q26
SFFnF319PBLF-IS-Q26

12(9)x 1394 Bilingual (female) 9-pin,
permanently attached to 19"-Panel,
3x IRIG and 4(3)xSYNC

n feet

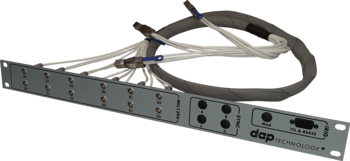

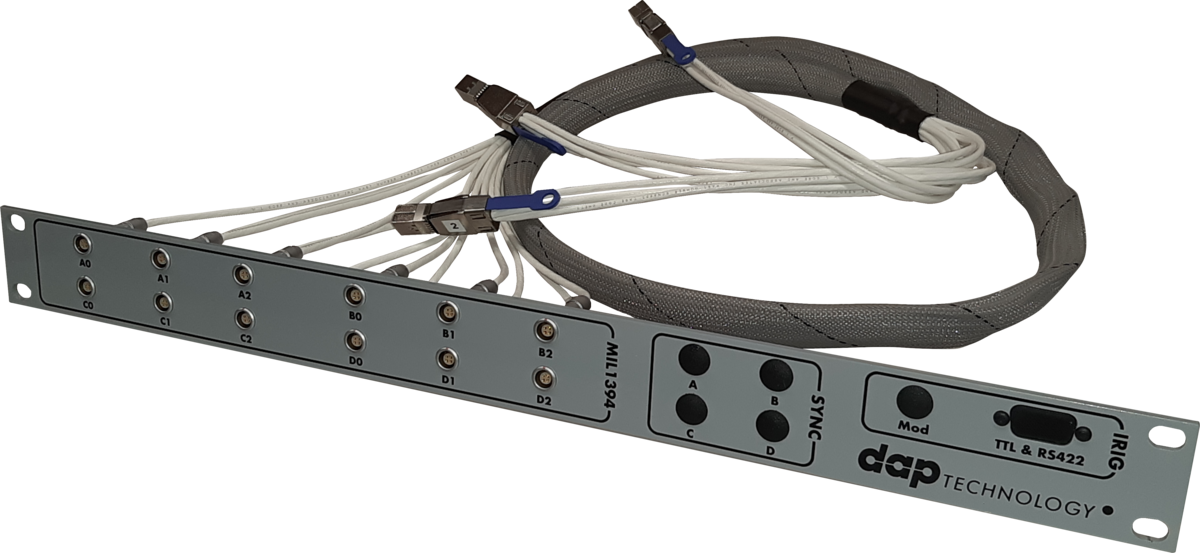

SFFnF419PLEF-IS-Q26
SFFnF319PLEF-IS-Q26

12(9)x LEMO (female),
permanently attached to 19"-Panel,
3x IRIG and 4(3)xSYNC

n feet

The harnesses above are also available in 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lenghts.
The harnesses above can also be built with termination sockets of the following type(s): Mil38999 m/f
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: Gore Quadrax
Codes: ECCN EAR99, HTS: 8544.49.1000

SFFnF419PBLF-Q26
SFFnF319PBLF-Q26

3x SFF-8614

12(9)x 1394 Bilingual (female) 9-pin,
permanently attached to 19"-Panel

n feet

SFFnF419PLEF-Q26
SFFnF319PLEF-Q26

3x SFF-8614

12(9)x LEMO (female),
permanently attached to 19"-Panel

n feet

The harnesses above are also available in 5ft, 10ft, 15ft, 20ft and 50ft variants as well as custom lengths.
The harnesses above can also be built with termination sockets of the following type(s): Mil38999 m/f
The harnesses can also be built with 24AWG or 22AWG with less connections. Details depend on the cable gauge used.

Warning: The usage of the SFF connectivity in this harness is tailored for IEEE1394 and has a non-standard pinning. It shall only be used in combination with FireTrac and FireAdapter cards.

For Product(s): FireTrac4x24bT, FireTrac3x24bT, FireAdapter4424bT, FireAdapter3424bT
Documents: -
Cable Type: -
Codes: ECCN EAR99, HTS: 8544.49.1000

Part number:
SFFDongleAB&CD

Termination 1:
SFF-8614

Connections:
Port Ax connected to Port Bx
Port Cx connected to Port Dx

Length:
-

SFFDongleAD&BC

-

SFFDongleAB

-

SFFDongleAC

-

SFFDongleBC

-

For Product(s): FireTrac4x24bT, FireTrac3x24bT
Documents: -
Cable Type: Coax
Codes: ECCN EAR99, HTS: 8544.49.1000

Part number:
DSU1F5BNC-IS

Termination 1:
Dsub15 (male)

Termination 2:
4x BNC (male):SYNC1-4
1x BNC (male): IRIG-B122 modulated

1x Dsub9 (female):
- IRIG-B002 TTL
- IRIG-B002 RS422

Length
1 foot
