AS5643 Connectivity - AS5643 Cables and Harnessses

COTS IEEE-1394 Harnesses

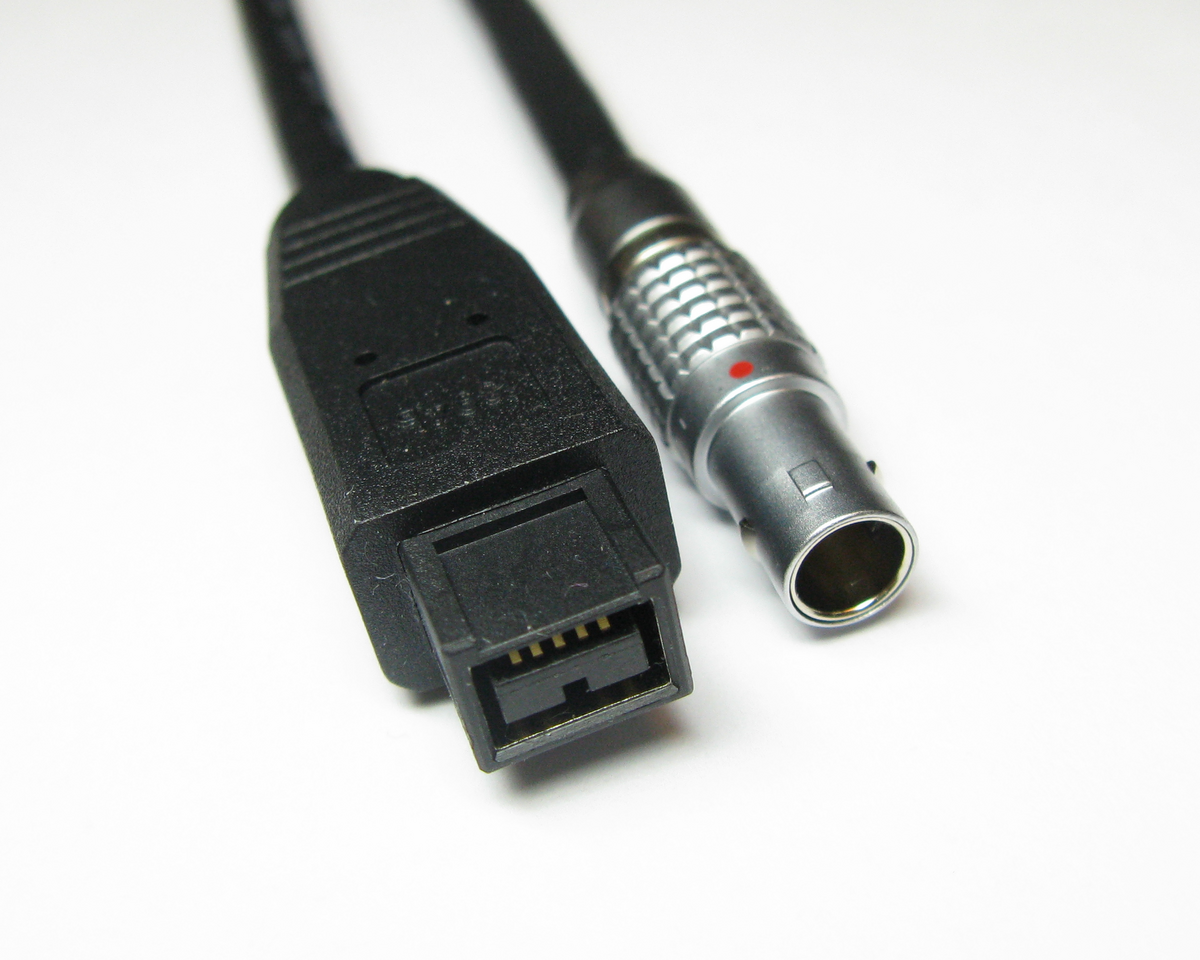

LEMO-Beta cable

For Product(s): For all FireSpys with LEMO connectors (FS-Gen4, FS3852)
Documents: -
Cable Type: standard 1394 (<11ft)
Codes: Export Control: EAR99, HTS: 8544.49.10.00

Part number: Termination 1: Termination 2: Length:

BEMnF1LEM-STD
(was CAFS4G for 5ft)

1394b, Beta (male)
9-pin

LEMO male (EGG.0B.304)

n feet

The harnesses above are available in 3ft, 5ft, 7ft and 10ft variants with standard 1394 cable. Please talk to our sales specialists for such variants.

For longer lengths the harness is built with Gore Quadrax (wire gauge according to SAE cable guide).

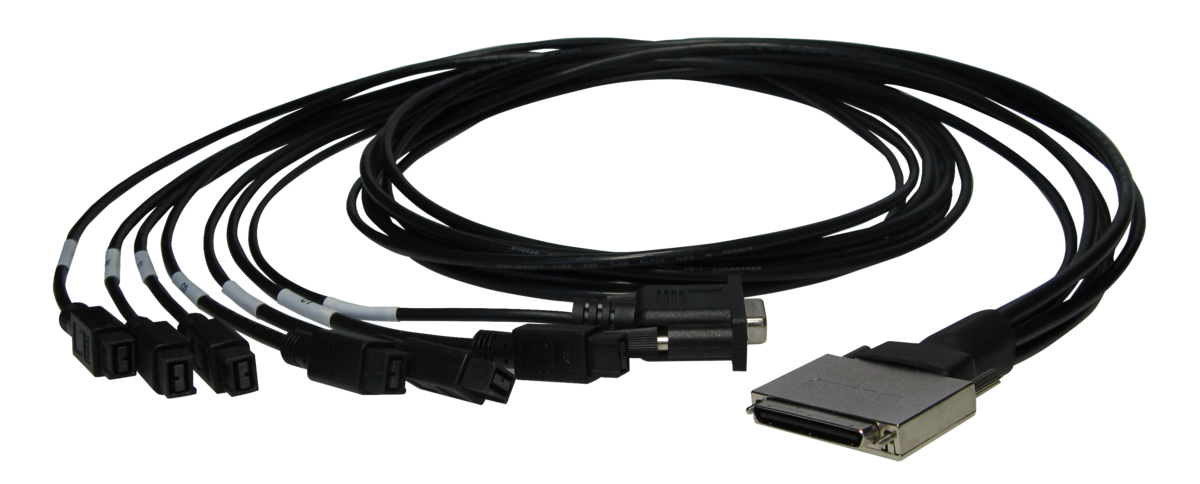

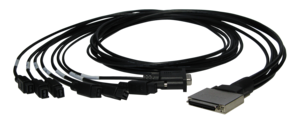

1394 VHDCI Spider Cable

For Product(s): Triple FireSpys with VHDCI connnector
Documents: -
Cable Type: standard 1394
Codes: Export Control: EAR99, HTS: 8544.49.10.00

Part number: Termination 1: Termination 2: Length:

CA686-91.5

1x VHDCI connector,
68-pin

6x 1394 Beta (male),
9-pin
1x SUBD

1.5 m



1394 SCSI2 Spider Cable

For Product(s): PMC cards with SCSI2 connector: FireTrac, FireAdapter
Documents: -
Cable Type: standard 1394
Codes: Export Control: EAR99, HTS: 8544.49.10.00

Part number: Termination 1: Termination 2: Length:

PMC3CH3FBM-STD


PMC3CH5FBM-STD

PMC3CH3FLM-STD

PMC3CH5FLM-STD

PMC3CH7FLM-STD

1x SCSCI2 connector,
68-pin

as above

as above


as above

as above

9x 1394 Beta (male),
9-pin

as above

9x 1394 Legacy (male),
9-pin

as above

as above

3 feet


5 feet

3 feet


5 feet

7 feet
