FireSpy® 3410(bT)/3810

The Triple Series USB/Ethernet hosted FireSpy3810 and FireSpy3410bT provide three FireSpy bus analyzers in one compact package. Designed to meet the requirements of AS5643 based tri-redundant bus architectures, the FireSpy3x10(bT) allow the single FireSpy to be connected to three separate IEEE-1394 buses while connecting to three synchronized analysis engines. Based on our Gen2 hardware platform, the FireSpy3x10(bT) contain 1GB internal memory and a powerful processor to provide the resources needed to service all three buses. The USB2.0 and Ethernet host interfaces allow communication with the FireSpy to be 10 to 40 times faster than our Basic Series products.

The FireSpy3x10(bT) bring out six active transformer-coupled ports, two from each bus analyzer, through a single high-density connector (VHDCI) to six IEEE-1394 Beta 9-pin cables. Additionally, they have three, one from each bus analyzer, IEEE-1394 Bilingual 9-pin connectors. For the FireSpy3410bT the AS5643/1 active transformer coupled ports can only operate at S200 and S400 Beta data rates, while the bilingual ports support S100, S200 and S400 Beta connections. For the FireSpy3810 the AS5643/1 active transformer coupled ports can only operate at S400 and S800 Beta data rates, while the bilingual ports support S100, S200 and S400 legacy connections and S400 and S800 Beta connections.

The FireSpy3x10(bT) utilize the same FireDiagnosticSuite™ software as all other FireSpy bus analyzers. However, all bus analyzers are presented in a single GUI. FireDiagnostics Suite™ supports Windows™ Operating Systems. Additionally, the FireDiagnostics Suite API allows you to build your own control software using C/C++ or LabVIEW™.

The seamless integration of the AS5643 protocol makes the FireSpy3x10(bT) the preferred tools for many Aerospace & Defense development tasks. DapTechnology has made considerable efforts to fully support the SAE AS5643 protocol in all major functional areas of the FireSpy3x10(bT) and continuously updates the analyzer functionality according to implementation requirements and ongoing standardization efforts.

Life Cycle Status

End of Sales     Aug 2020
not recommended for new designs
replaced by: FireSpy3830bT

Key features

  • IEEE-1394-2008 and AS5643 compliant
  • Supported speeds depend on exact model:
    • FireSpy3810: one (1) Port (per bus) : S100-S400 Legacy and S400-S800 Beta, two (2) Transformer-coupled ports per bus (per bus) : S400-S800 Beta
    • FireSpy3410bT: one (1) Port (per bus) : S200-S400 Beta, two (2) Transformer-coupled ports (per bus) : S200-S400 Beta
    • FireSpy3410bT1: one (1) Port (per bus): S100-400 Beta, two (2) Transformer-coupled ports (per bus): S100-S200 Beta
  • Host connection to PC via USB 2.0 or Ethernet (10/100 BaseT) interface
  • Standalone operation using internal flash memory option
  • On-board 400 MHz RISC processor and programmable logic
  • 1GB internal memory
  • GUI and API for WindowsTM Operating Systems
  • 3 analyzer engines in one product
  • Enhanced Scriptor functionality for real-time monitoring and asynchronous packet generation
  • Powerful software provides:
    • Monitor
    • Recorder
    • Commander
    • Scriptor (programmable in C-like language)
    • Generator
    • Filter and Trigger
    • Mil1394 Signal Monitor
  • Support for AS5643, AV/C, SBP2, IP1394 and IIDC protocols
  • Internal SelfTest
  • C/C++ API with LabVIEWTM Wrappers

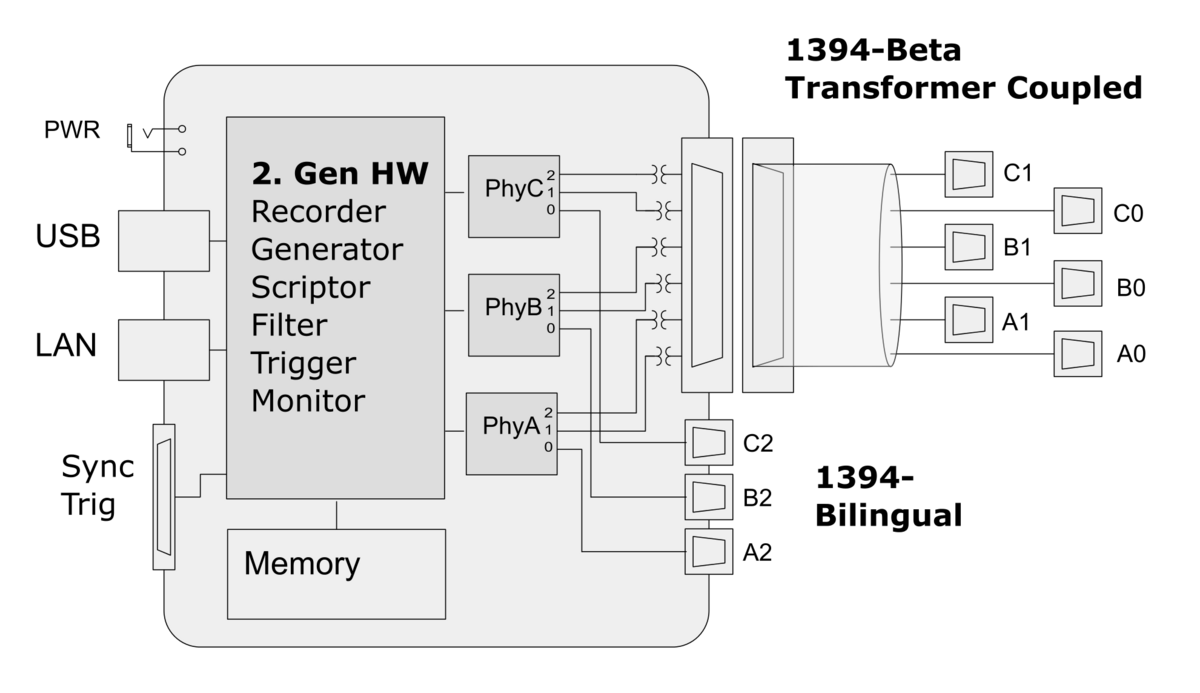

Block Diagram

FireSpy3810 and FireSpy3410bT

FireSpy® 3410(bT)/3810 specifications

Dimensions: 125 mm x 48 mm x 209 mm
Weight: 800 g
Power Requirements: 12V, 10 Watt maximum
Regulatory compliance: FCC Class A , CE
Connections:

USB2.0 Connector for host-computer

3 IEEE1394 Connectors (bilingual)

VHDCI Connector for 6x Transformer-coupled 1394 connections and AUX

RJ45 Ethernet Connector

Indicators





Green LEDs for:
    USB connection, Power on, Ready, Trigger

Red LEDs for:
     Record, Active
Switches: Tumble switch for Power On/Off
Part Number:

FS381 (FS381AS5643 with AS5643 protocol)

FS341bT (FS341bTAS5643 with AS5643 protocol)
Codes:

ECCN:3A992.a

HTS: 8471.90.0000


SW Add-on modules:









SBP2 protocol software package

IIDC protocol software package

AV/C protocol software package

IP1394 protocol software package

AS5643 protocol software pack

FireSpy® 3410(bT)/3810 media files

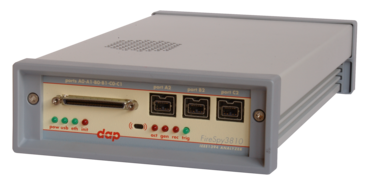

Product Image(s)

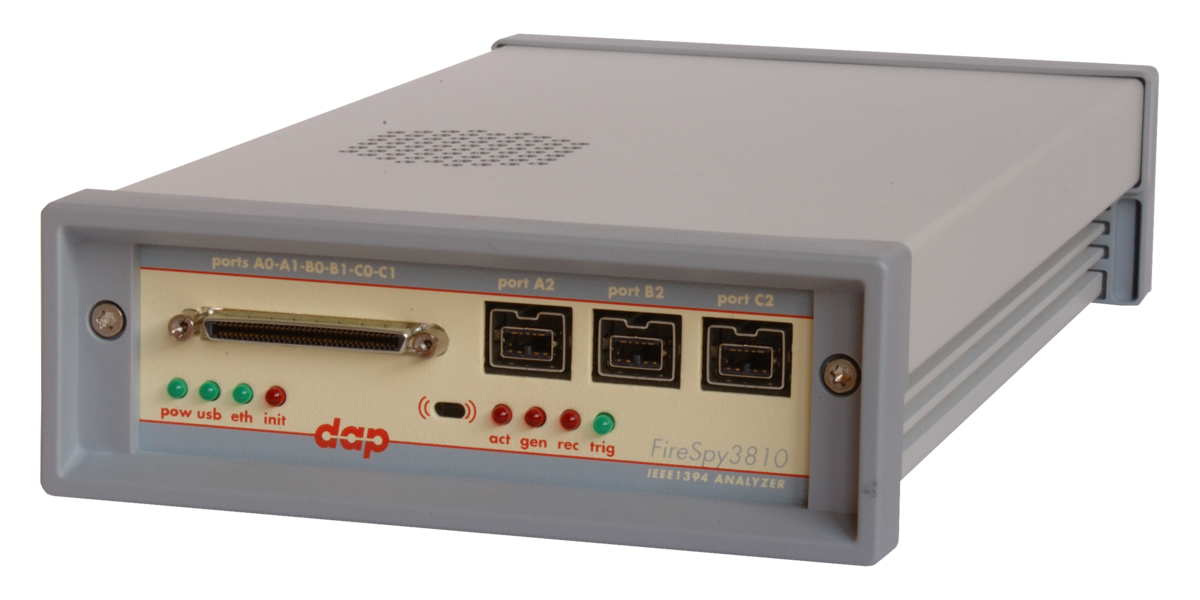

FireSpy3810 (front view)

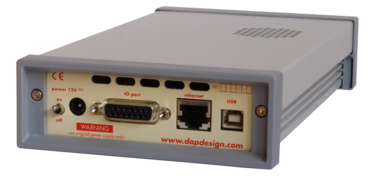

FireSpy3810 (rear view)

Connectivity Example(s):

1394 and AS5643 Bus Analyzer - FireSpy Triple Connectivity
connectivity option: connected to three buses per VCC (vehicle management computer) in a 3x3 network configuration (3 VCCs, triple redundancy)
1394 and AS5643 Bus Analyzer - FireSpy Triple Connectivity
connectivity option: connected to one bus per VCC (vehicle management computer) in a 3x3 network configuration (3 VCCs, triple redundancy)
