Based on the 4th Generation bus analyzer architecture, the FireSpy9X32bT, in fact combines nine single-channel FireSpy analyzers into one single IEEE-1394 bus test instrument. The analyzer features an on-board processor that is significantly more powerful, as well as improved host computer connectivity via USB3.

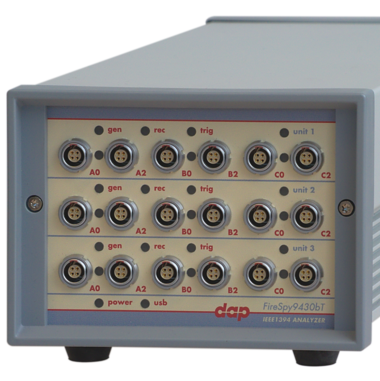

The FireSpy9x32bT boasts 9 IEEE-1394 nodes connected to nine synchronized analysis engines which are driven by three dual-core ARM processors running at 667 MHz. Each node has two connected ports which are each terminated with LEMO push-pull connectors for improved ruggedness. The FireSpy9x32bT is equipped with 15GB of internal memory and features extensive hardware filtering & triggering capabilities. The analyzer can be connected to a host computer using the USB3 interface. On the host, the provided user-friendly GUI may be used to control the FireSpy for analyzing and displaying bus traffic, or alternatively, the available API can be used to author custom control software.
The seamless integration of the SAE AS5643 standard, available as a protocol add-on, makes the FireSpy9x32bT the preferred tool for many aerospace & defense qualification & flight line test solutions. DapTechnology has committed extensive resources and effort to support the SAE AS5643 Standard in all major subsystems of the FireSpy9x32bT. The company continuously updates the analyzer's features & functionality according to implementation requirements and standardization efforts.
“Test coverage, portability, ruggedness & maintainability are key factors to consider when considering manufacturing and flight line test equipment” says Jan de Vries, CEO of DapTechnology. Mr. De Vries adds, “We are continuously striving to empower our customers by providing innovative, affordable & reliable tools that help drive increased productivity.
The FireSpy9x32bT is now available and may be purchased directly from DapTechnology or one of our authorized resellers. Additional information on FireSpy products and DapTechnology may be obtained by visiting www.daptechnology.com or by sending an e-mail to info(at)daptechnology.com.
