FireLink® Basic Version

The Basic Core is targeted for applications with up to 800 Mbps data transmission requirements and for designs with a non-PCI Link Controller requirement. Currently, there is no such silicon available. The FireLink® Core was designed to fill this gap. Any designs currently based on the Texas Instruments GP2Lynx (TSB12LV32) will greatly benefit as the FireLink® architecture shows many similarities. The FireLink® Core therefore provides a seamless upgrade path to IEEE1394-2002.

Some markets that could leverage the DapTechnology Firelink® Core are Aerospace & Defense, Industrial, and Consumer Electronics. As a special option, the FireLink® LLC offers Firmware Support for the SAE5643 (Mil1394) protocol. While current implementations require significant host SW support the FireLink® can support this layer with significantly better timing as well as reduced host resource utilization. Typical examples of applications in aerospace & defense for the FireLink® would include command & control systems for space-based vehicles, missile platforms, and fighter aircraft, as well as its implementation in avionics & IFE platforms for business and commercial aircraft.

The industrial applications of FireLink® are quite broad and include robotics, machine vision, wide format digital printing and medical imaging. Finally, the FireLink® LLC Core is ideal for use in Consumer Electronics equipment such as Set Top Boxes, DVD peripherals and High Definition A/V equipment.

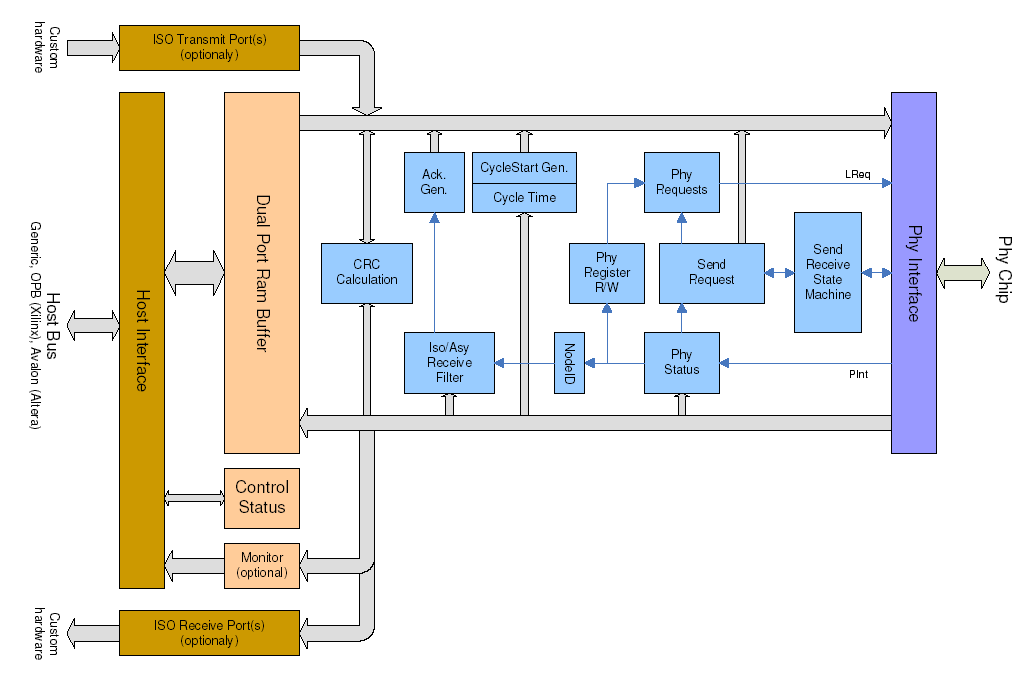

In the Basic version the packet data flow is processor driven, i.e. any received/transmitted packets have to be read from or written to a Dual-Ported RAM Buffer. The Dual-Ported RAM Buffer is located inside the core and is customizable in size to accommodate for the maximum packet size.

This concept is ideal for small core sizes.

Host Bus Interface
•Generic: A generic 32-bit synchronous host bus.
• OPB: A 32-bit synchronous bus used in Xilinx FPGAs for their MicroBlaze and PowerPC processors.
• Avalon: A 32-bit synchronous bus used in Altera FPGAs for their NIOS processor.

The Basic version is implemented as a slave-only bus interface while the Extended version, however, will utilize a DMA engine which will access the bus as a Master.

Control Status
Both versions have a number of registers that can be written and or read. They are used to control the Link Layer Controller and to check its status. For the Extended version, control for the DMA engine is also provided.

CRC Calculation/Verification
Data and Header CRC are automatically added for Outgoing Packets. CRCs are verified for incoming packets. Faulty packets are ignored. Additionally errors can be injected for TX packets (header and or data CRC).

Ack Generation
Acknowledge Packet Generation is based on incoming packet content, available buffer space as well as LLC state. As an added feature Acknowledges can be suppressed or erroneous Ack codes can be injected.

Filtering
NodeID (async) and channel number (iso) specific packet filter engine.

Cycle Start Generation (optional)
A Cycle Start Packet generation functionality with its associated Cycle_Time Register is optionally supported by the HW.

ISO Ports (optional)
Optionally, ISO Receive and/or ISO Transmit ports can be added. The purpose of these ports is to connect dedicated stream HW (e.g.: image/video generating/receiving HW) for the handling of data streams without burdening the host processor. Received and Transmitted isochronous packets can be routed through the ISO Ports therefore providing a dedicated and highly efficient data path for the isochronous packets. Optionally the packet headers will be skipped (RX) or automatically generated (TX).

Monitor (optional)
Optionally, a packet monitor is supported. This tool is mainly targeted for debugging purposes.
